Interactive<br> Digital<br> Signage interactive digital signage

Model 1561E-IOT 1851E-IOT 2151E-IOT
Case/Bezel Color Black/Silvery/white(Customized)
Display Size 15.6″ 18.5″ 21.5″
Style True Flat
Touch panel Projected Capacitive touch screen
Touch response time 8ms
Touchcomputors Dimensions 391.84*34.9*344.84mm 460.83*41.2*281.43mm 525.73 x 41.2 x 317.2 mm
LCD Type TFT LCD(LED backlight)
Useful Screen Area 345.5 mm x 195 mm 409.8 mm x 230.4 mm 476.64×268.11mm
Aspect ratio 16:9
Optimal (native) Resolution 1920 x 1080 1366 x 768 1920 x 1080
LCD panel Pixel pitch 0.17925 x 0.17925 mm 0.3 x 0.3mm 0.24825×0.24825mm
LCD panel Colors 16.7 million
LCD panel Brightness 250 cd/㎡(customized upto 1000 cd/㎡ optional)
LCD panel Response Time 25 ms 14 ms
Viewing Angle
(typical, from center)
Horizontal ±85° or 170° total ±85° or 170° total ±89° or 178° total
Vertical ±85° or 170° total ±80° or 160° total ±89° or 178° total
Contrast Ratio 800:1 1000:1
output Video connector Mini D-Sub 15-Pin VGA type and HDMI type (optional)
Input interface usb 2.0*2 & usb 3.0*2 & 2*COM(3*COM optional)
1*Earphone1*Mic1*RJ45(2*RJ45 optional)
Extend interface usb2.0usb3.0comPCI-E(4G SIM card, wifi 2.4G&5G & Bluetooth module optional)M.2(for CPU J4125)
Power Supply Type Monitor input: +12V DC ±5%,5.0 A; DC Jack(2.5¢)
AC to DC power brick input: 90-240 VAC, 50/60 Hz
Power Consumption: Less than 40W Power Consumption: Less than 50W
ECM
(Embed Computer Module)
ECM3: Intel processor (J1900&J4125)
ECM4: Intel processor i3(4th -10th) or 3965U
ECM5: Intel processor i5(4th -10th)
ECM6: Intel processor i7(4th -10th)
Memory:DDR3 4G-16G Optional;DDR4 4G-16G Optional (Only for CPU J4125) ;
Storage:Msata SSD 64G-960G optional or HDD 1T-2TB optional;
ECM8: RK3288; Rom:2G; Flash:16G; Operation System: 7.1
ECM10: RK3399; Rom:4G; Flash:16G; Operation System: 10.0
Temperature Operating: 0°C to 40°C ;Storage -20°C to 60°C
Humidity (non condensing) Operating: 20%-80%; Storage: 10%-90%
Shipping Carton Dimensions 444*280*466 mm(3pcs) 598x184x444mm(2pcs) 598x184x444mm (2pcs)
Weight (approx.) Actual: 3.5 kg ;Shipping: 12 kg(3pcs) Actual: 5.4 kg ;Shipping: 11.4 kg(2pcs) Actual: 5.7 kg ;Shipping: 12 kg(2pcs)
Warranty Monitor 3 years(Except for LCD panel 1 year)
Backlight lamp life: typical 15,000 hours to half brightness Backlight lamp life: typical 30,000 hours to half brightness
Agency Approvals CE/FCC/RoHS (UL & GS & CB & TUV customized)
Mounting Options 75 mm and 100mm VESA mount
interactive

9.7-86 inch

interactive
digital
signage

Customize your ideal products
  • Splash and dust proof
  • Portrait
    mode
  • Zero bezel & true-flat screen design
  • Ultra-slim design
  • Support different installation
  • Support 10 points touch

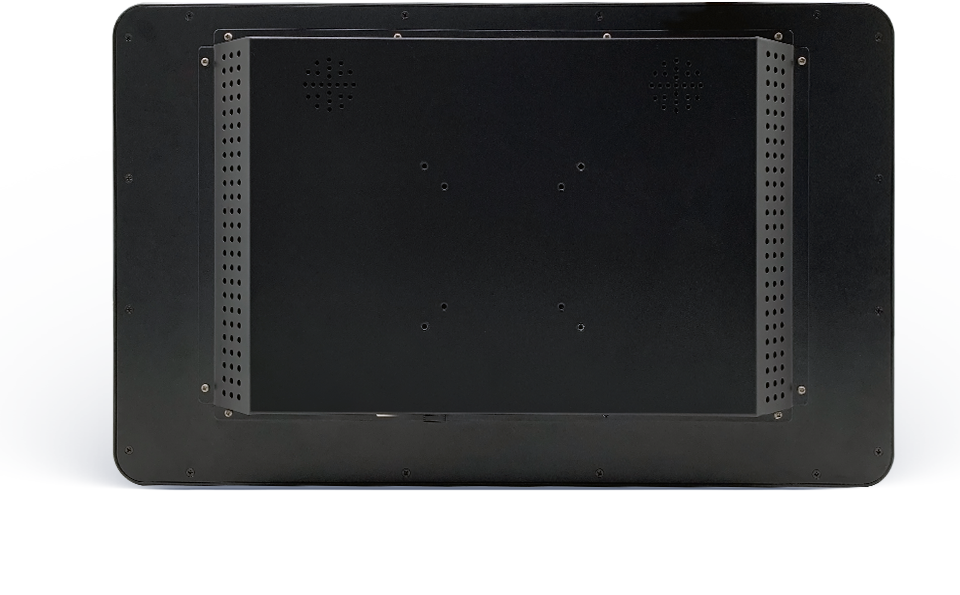

  • VESA standard 75mm&100mm
  • Customized brightness
  • Customized resolution

application

From retail, entertainment to query machines and digital signage, it is ideal for continuous use in public environments.
  • Public query machine

  • Catering

  • Game&Gambling

  • Education

excellent performance

Processor

Powered by new generation processors (Intel series and Android processors), it improves the experience of users.

RAM/ROM

Offer several options of RAM/ROM to satisfy your needs.

System

Support Windows, Android and Linux.
  • CPU
  • ROM
  • RAM
  • WINDOWS
  • ANDROID
  • LINUX

ADVANCED DISPLAY
DESIGN

Adopts True flat and zero-bezel design.

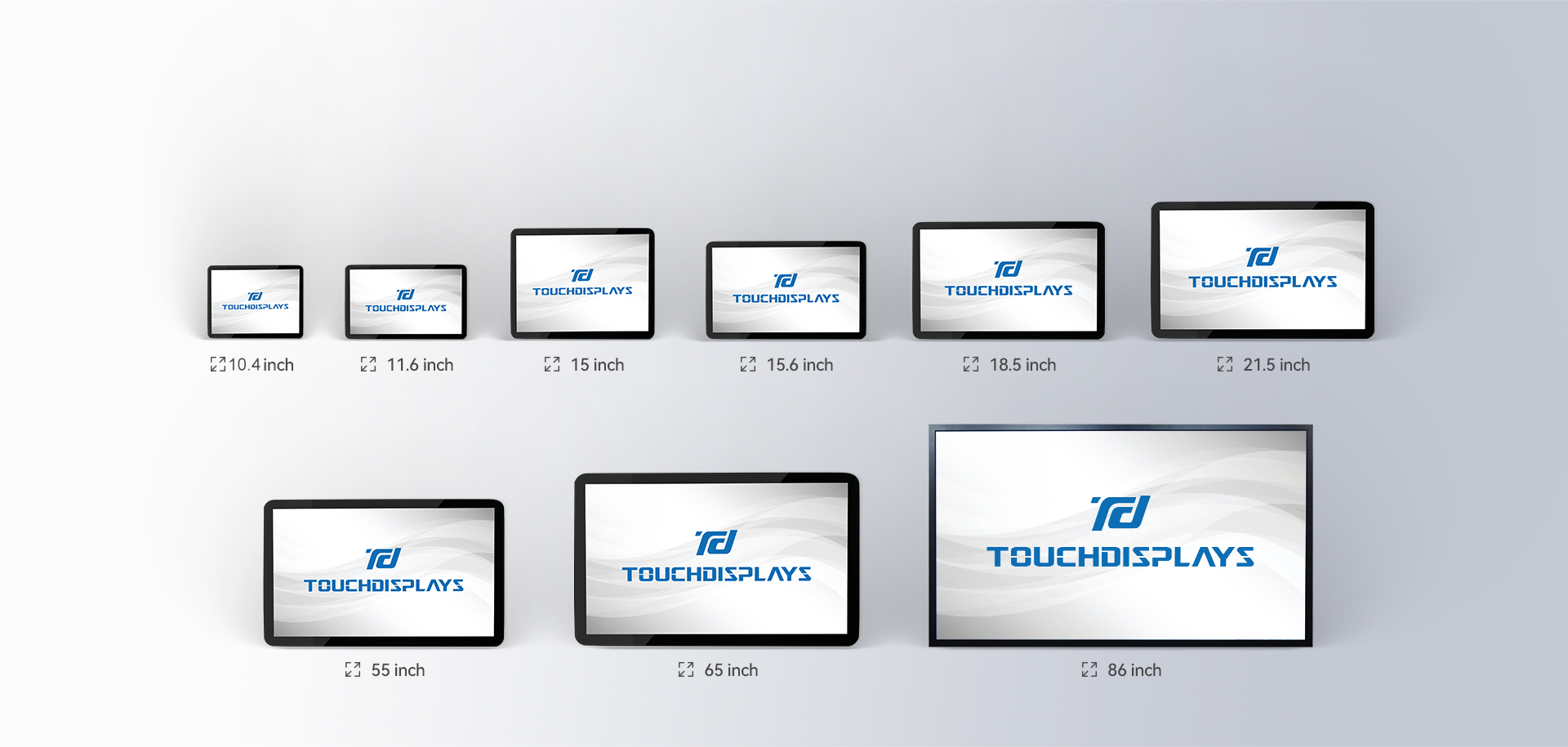

Customized size from 9.7 inch to 86 inch.

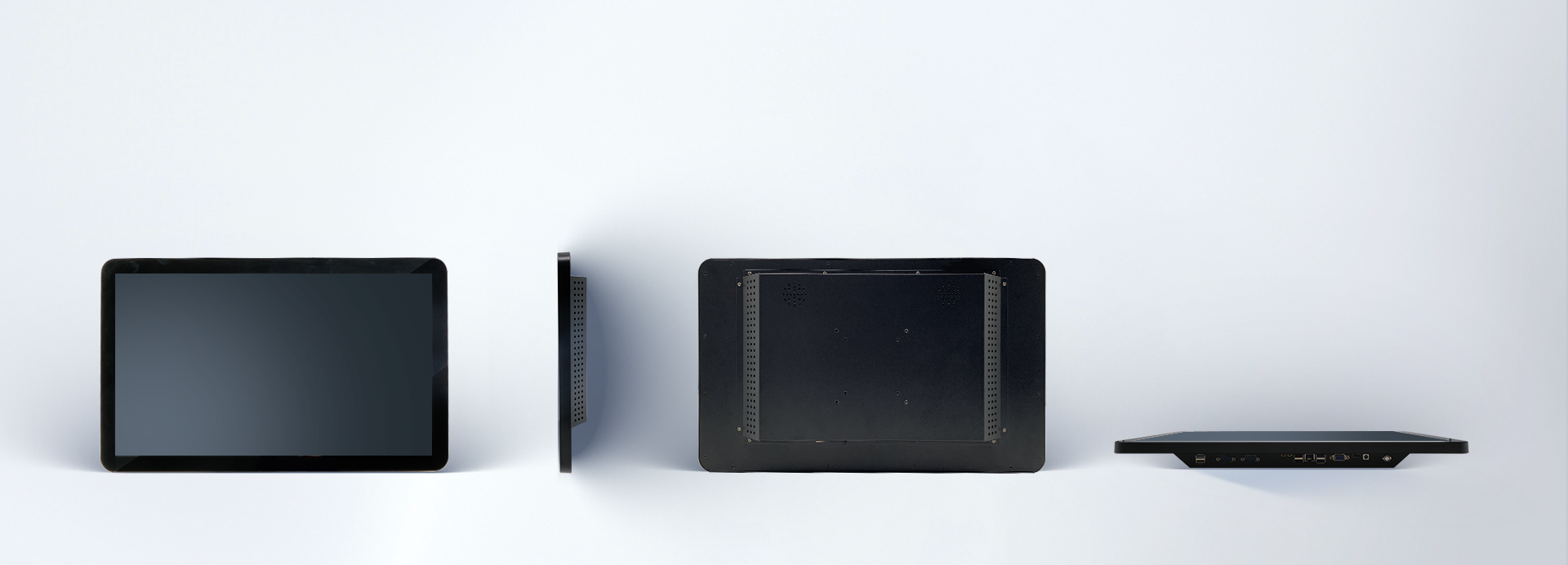

Display In Multiple Size

Support demand of dimension customization.

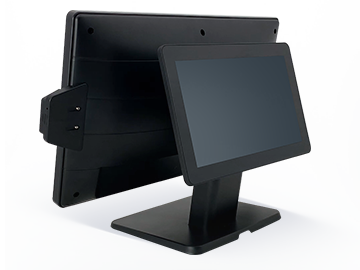

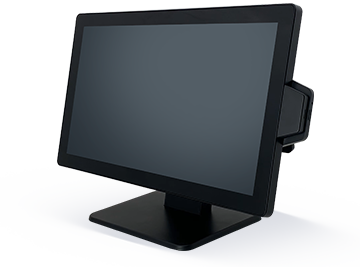

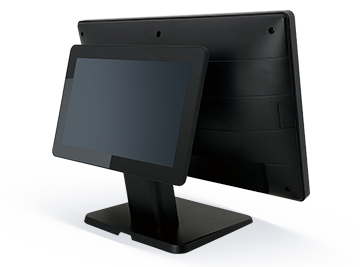

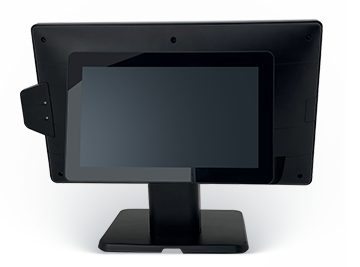

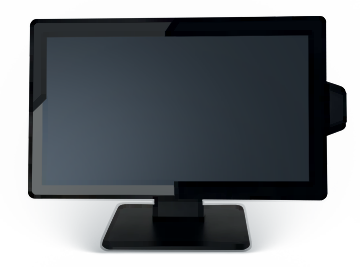

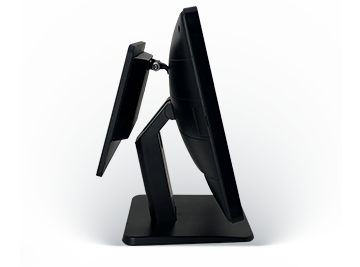

product
show

Morden design concept conveys advanced vision.

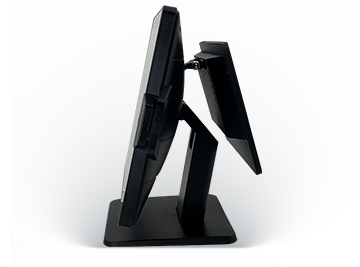

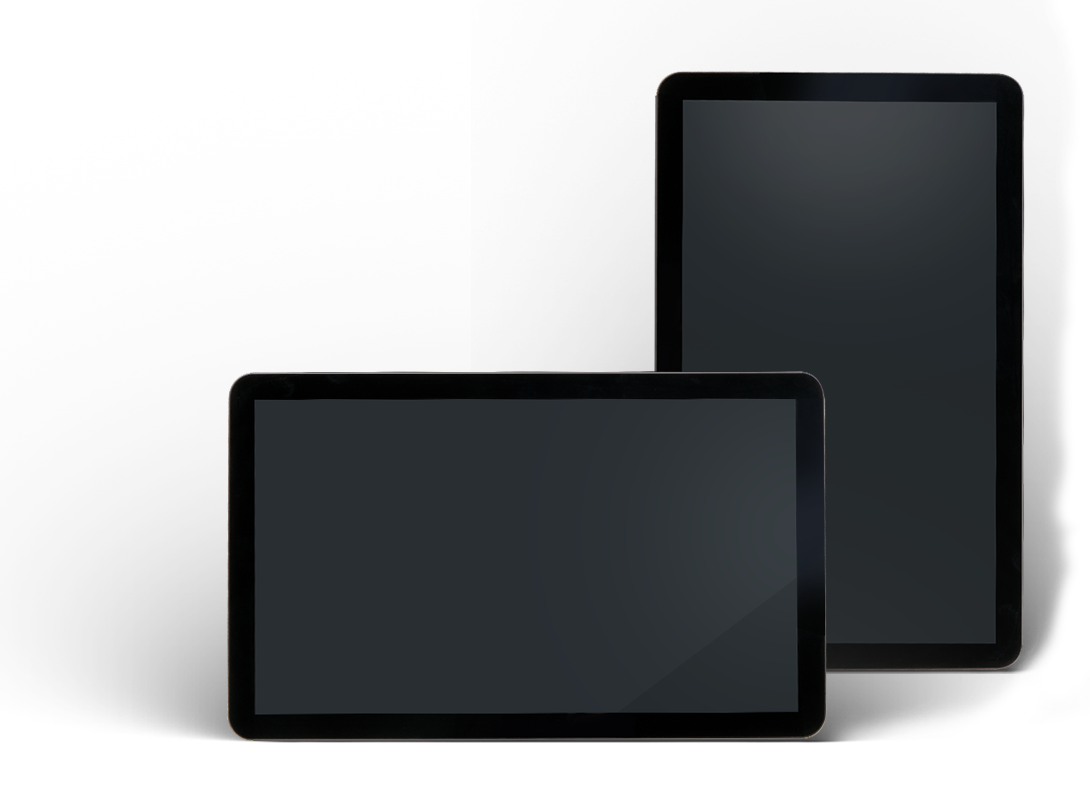

Horizontal and
vertical screen
installation

Whether it is horizontal or vertical, it fits perfectly,
meet the demands of different environments.

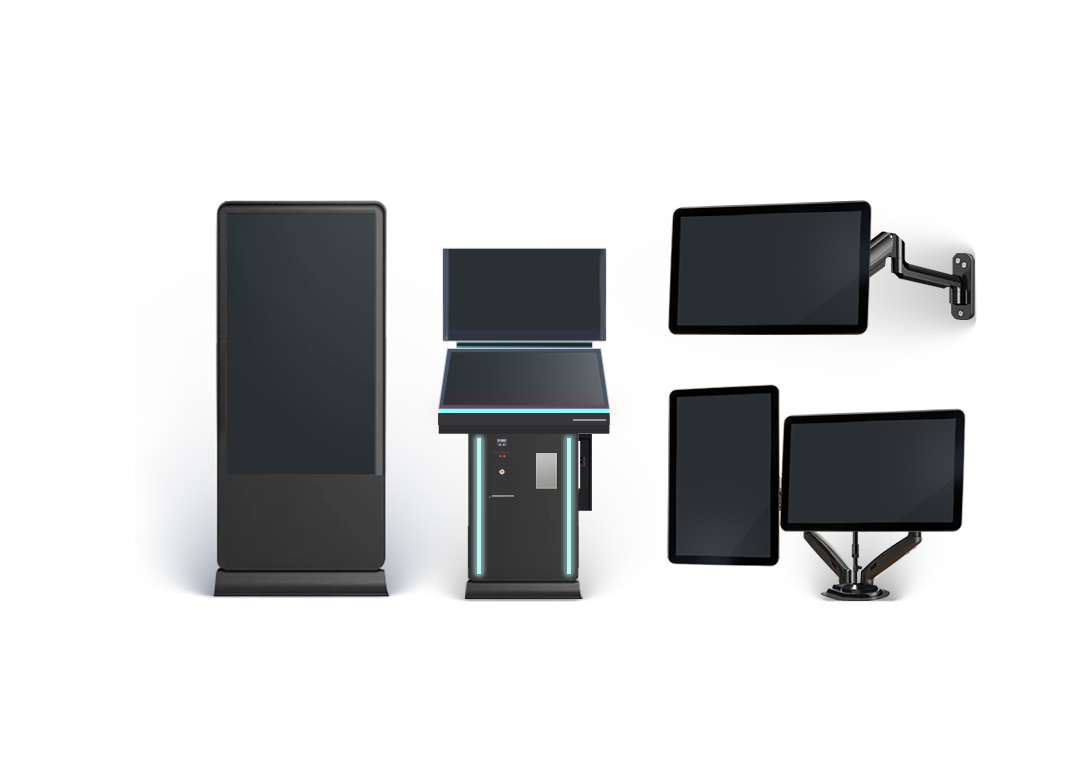

  • Digital
    Signage
  • Embedded
  • Wall-Mounted
  • Counter
    Top

durability design

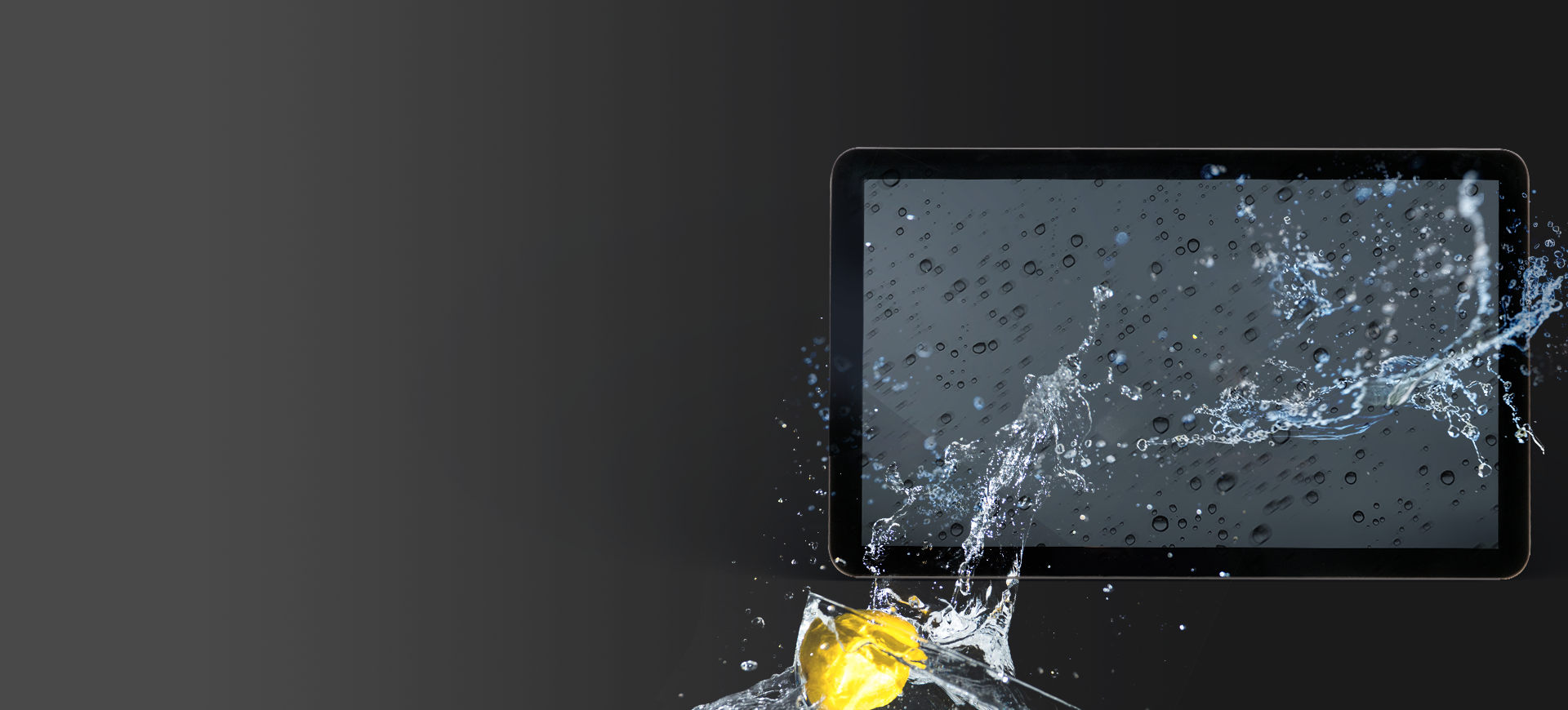

SPLASH and Dust
Resistant

TouchDisplays is committed to designing best-in-class, durable products. Front IP65 standard splash proof and dust proof make POS series suitable for harsh operating environment, extending its service life.

Fully
Customization
Support

Offer ODM&OEM service to meet your specialized needs perfectly.

Appearance
Customization

Powered by new generation processors (Intel series and Android processors), it improves the experience of users.

Function
Customization

Add more function to the products to satisfy the needs.

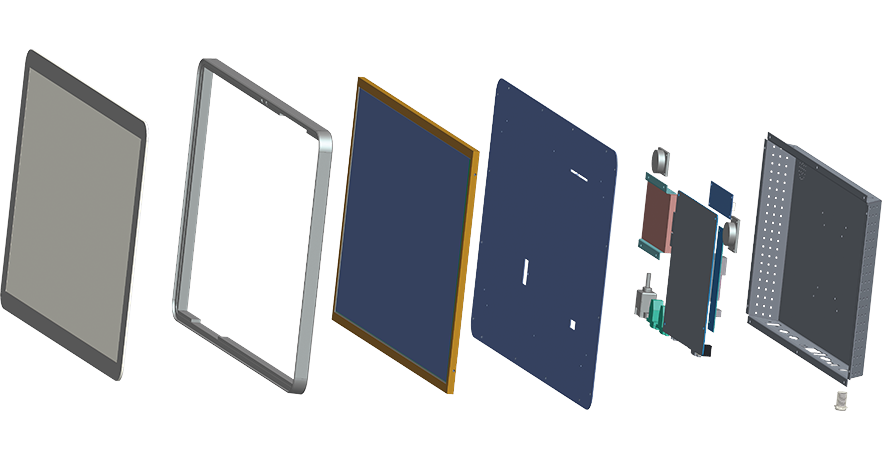

Module
Customization

Design your ideal product according to your requirement.
