| Model | 1561E-OT-U | 1851E-OT-U | 2151E-OT-U | |
| Case/Bezel Color | Blackwhite | |||
| Display Size | 15.6″ | 18.5″ | 21.5″ | |
| Touch panel | Projected Capacitive Touch Screen | |||
| Touch points | 10 | |||
| Touch response time | 8ms | |||
| Touchmonitors Dimensions | 391.84*32.9*344.84mm | 460.83*39.2*281.43mm | 525.73 x 39.2 x 317.2 mm | |
| LCD Type | TFT LCD(LED backlight) | |||
| Useful Screen Area | 345.5 mm x 195 mm | 409.8×230.4mm | 476.64×268.11mm | |
| Aspect ratio | 16:9 | |||
| Optimal (native) Resolution | 1920*1080 | 1366*768 | 1920*1080 | |
| LCD panel Pixel pitch | 0.17925 x 0.17925 mm | 0.3 x 0.3 mm | 0.24825×0.24825mm | |
| LCD panel Colors | 16.7 million | |||
| LCD panel Brightness | 250 cd/㎡(customized upto 1000 cd/㎡ optional) | |||
| LCD panel Response Time | 25 ms | 14 ms | 18 ms | |
| Viewing Angle (typical, from center) |
Horizontal | ±85° or 170° total | ±85° or 170° total(true viewing angle) | ±89° or 178° total |
| Vertical | ±85° or 170° total | ±80° or 160° total(true viewing angle) | ±89° or 178° total | |
| Contrast Ratio | 700:1 | 1000:1 | 3000:1 | |
| Input Video signal connector | Mini D-Sub 15-Pin VGA type and HDMI type or DP type optional | Mini D-Sub 15-Pin VGA type and HDMI type or DVI type optional | ||
| Input Touch signal connector | USB or COM (optional) | |||
| Power Supply Type | Monitor input interface: +12VDC ±5%,5.0 A; DC Jack (2.5￠) | |||
| AC to DC power brick input: 100-240 VAC, 50/60 Hz | ||||
| Power Consumption: 20W | Power Consumption: 28W | Power Consumption: 30W | ||
| On-screen display(OSD) | Controls(back): PowerMenuUpDownAuto; Settings: Contrast, Brightness, H/V position; RGB(color temp),Clock, Phase, Recall; Languages: English, German, French ,Spanish, Japanese, Italy, Chinese; |
|||
| Temperature | Operating: 0°C to 40°C ;Storage -20°C to 60°C | |||
| Humidity (non-condensing) | Operating: 20%-80%; Storage: 10%-90% | |||
| Shipping Carton Dimensions | 444*280*466 mm(3pcs) | 598x184x444mm(2pcs) | ||
| Weight (approx.) | Actual: 3.5 kg ;Shipping: 12 kg(3 PCS) | Actual: 5.4 kg ;Shipping: 11.4 kg(2 PCS) | Actual: 5.7 kg ;Shipping: 12 kg(2 PCS) | |
| Warranty Monitor | 3 years(Except for LCD panel 1 year) | |||
| Backlight lamp life: typical 15,000 hours to half brightness | Backlight lamp life: typical 30,000 hours to half brightness | |||
| Agency Approvals | CE/FCC/RoHS (UL & GS & CB & TUV customized) | |||
| Mounting Options | 75 mm and 100 mm VESA mount | |||
10.4-86 inch
touch
monitor
Infinite Possibilities
-
Splash and dust proof
-
Portrait
mode -
Zero bezel & true-flat
screen design
-
Ultra-slim
design
-
Support different
installation
-
Support 10 points
touch
-
VESA standard
75mm&100mm
-
Customized
brightness
-
Customized resolution
-

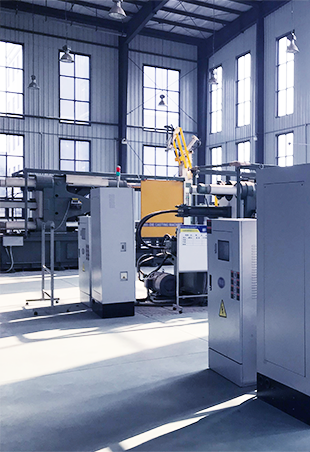

Industry
-
Medical
-
Game&Gambling
-
Education
ADVANCED
DISPLAY DESIGN
Adopts True flat and zero-bezel design.
Customized size from 10.4 inch to 86 inch.
Customized size from 10.4 inch to 86 inch.
visual impact through unique design
promote entertainment
experience
Specially provide solution for game&gambling machine, using frame with LED light to create Immersive experience.
CONTEMPORARY DESIGN

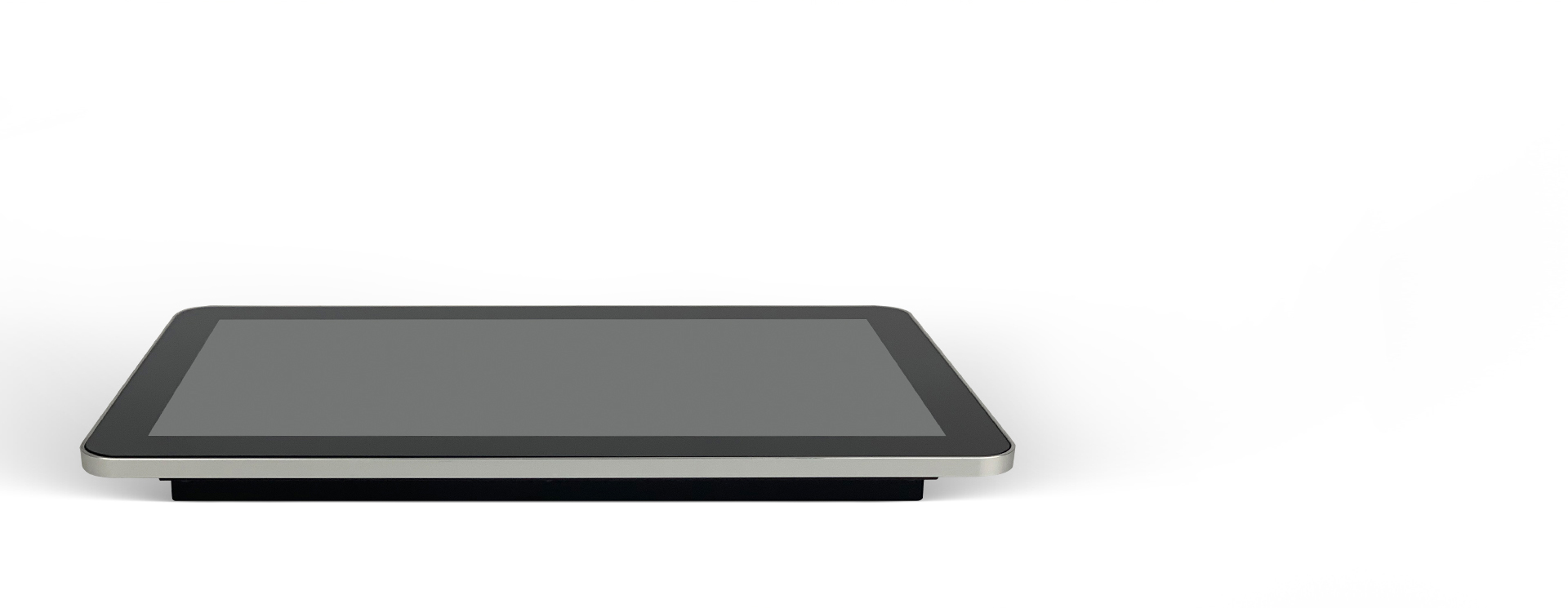

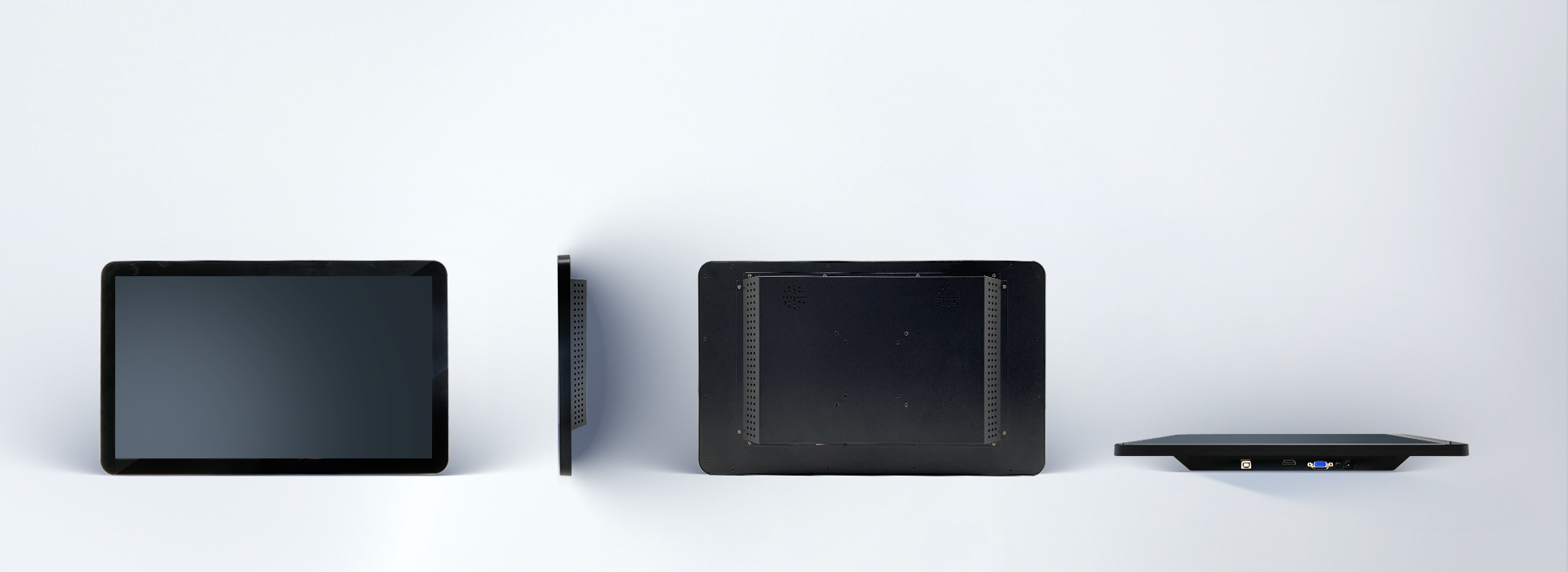

ULTRA-SLIM
DESIGN
The customized ultra-thin body delivers the modern aesthetics, brings a strong visual experience and saves space for connection to other devices.

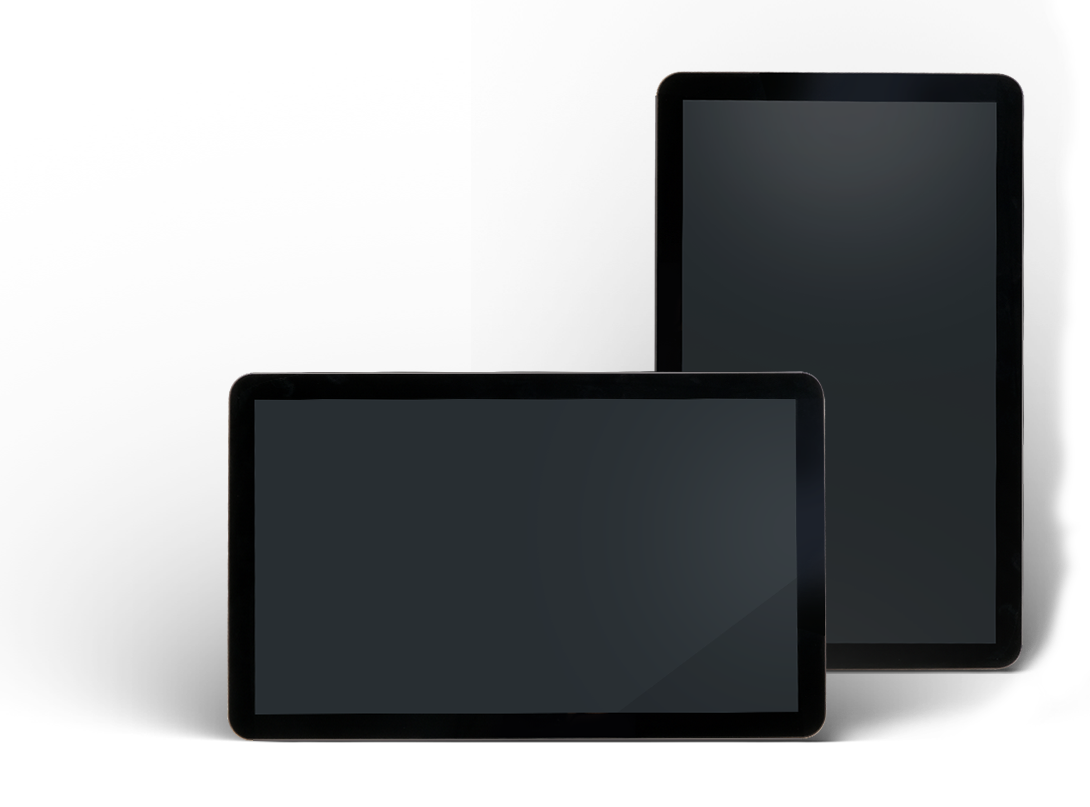

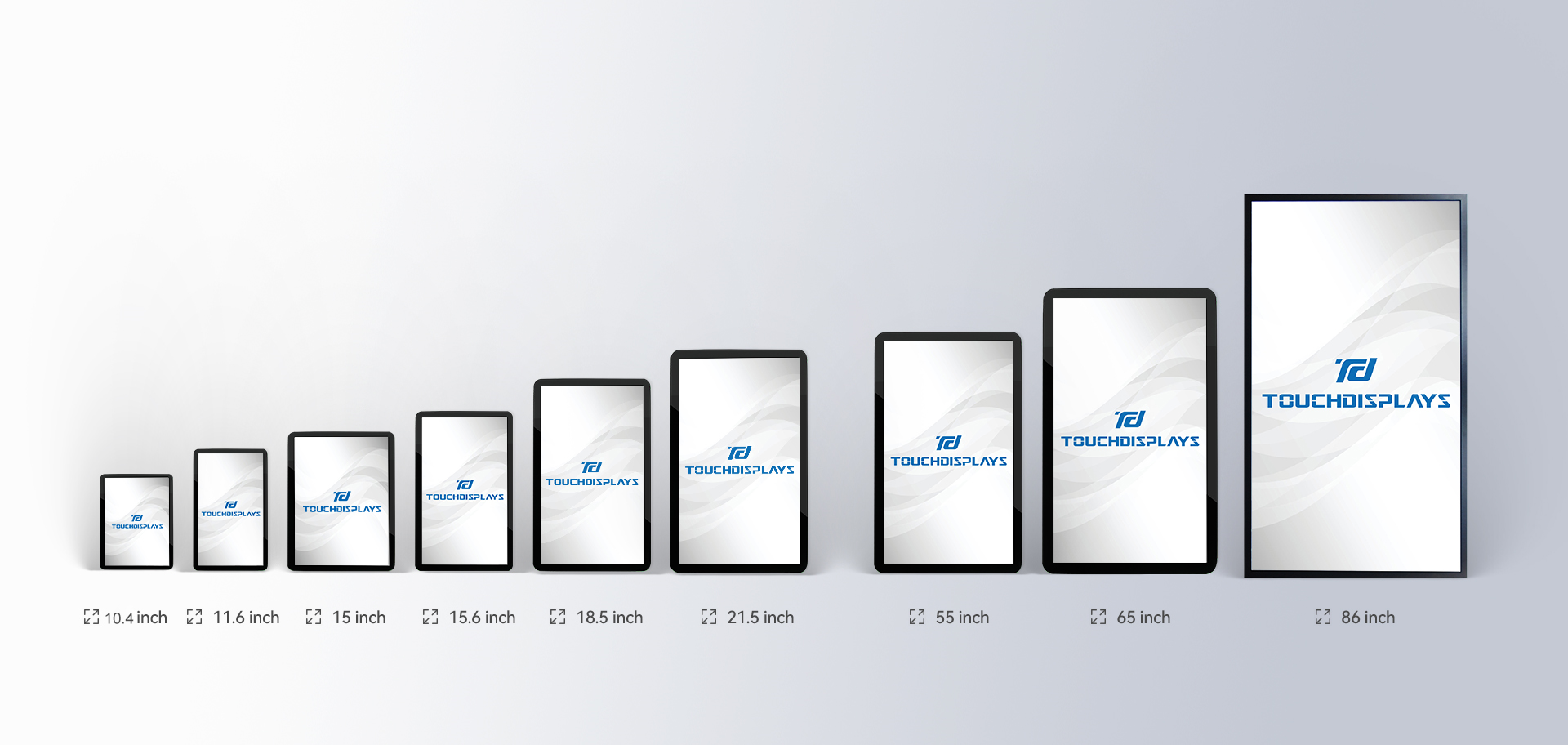

DISPLAY IN
MULTIPLE SIZE
Support demand of dimension customization.

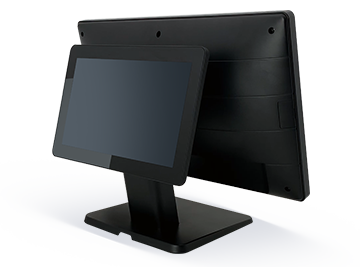

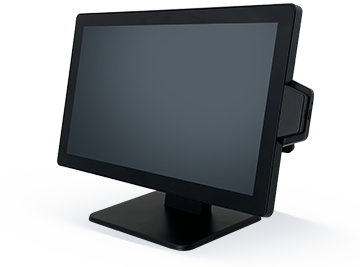

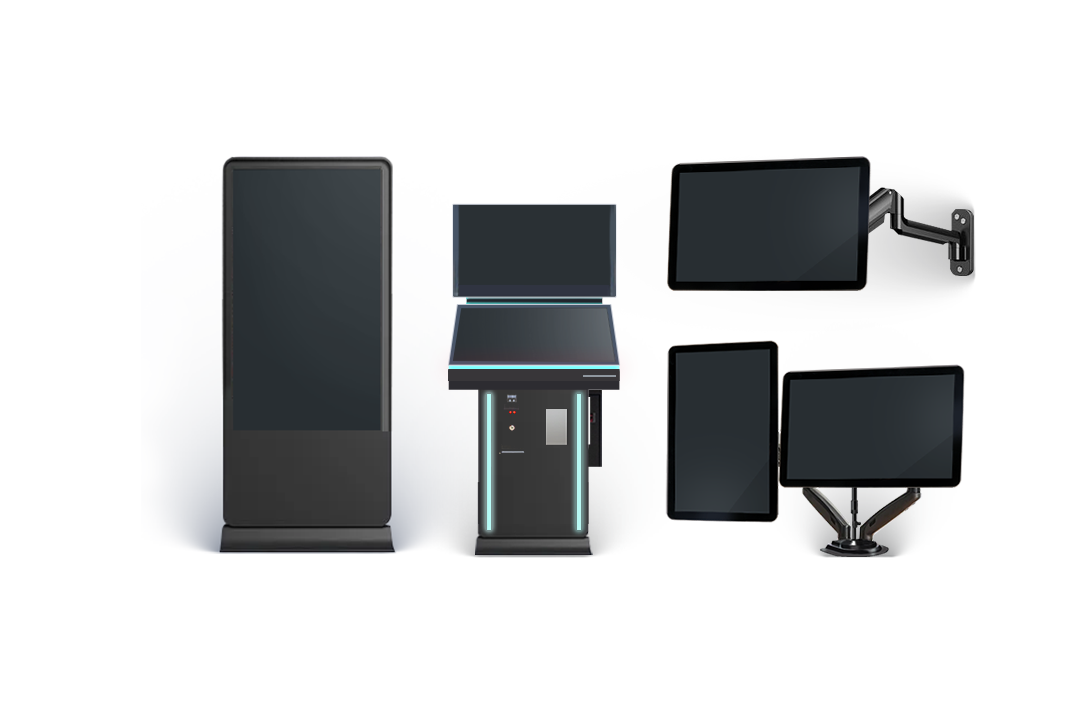

Various
Installation
Methods
Touch monitor supports different kinds of installation methods to adapt any environment where the products are required.
-

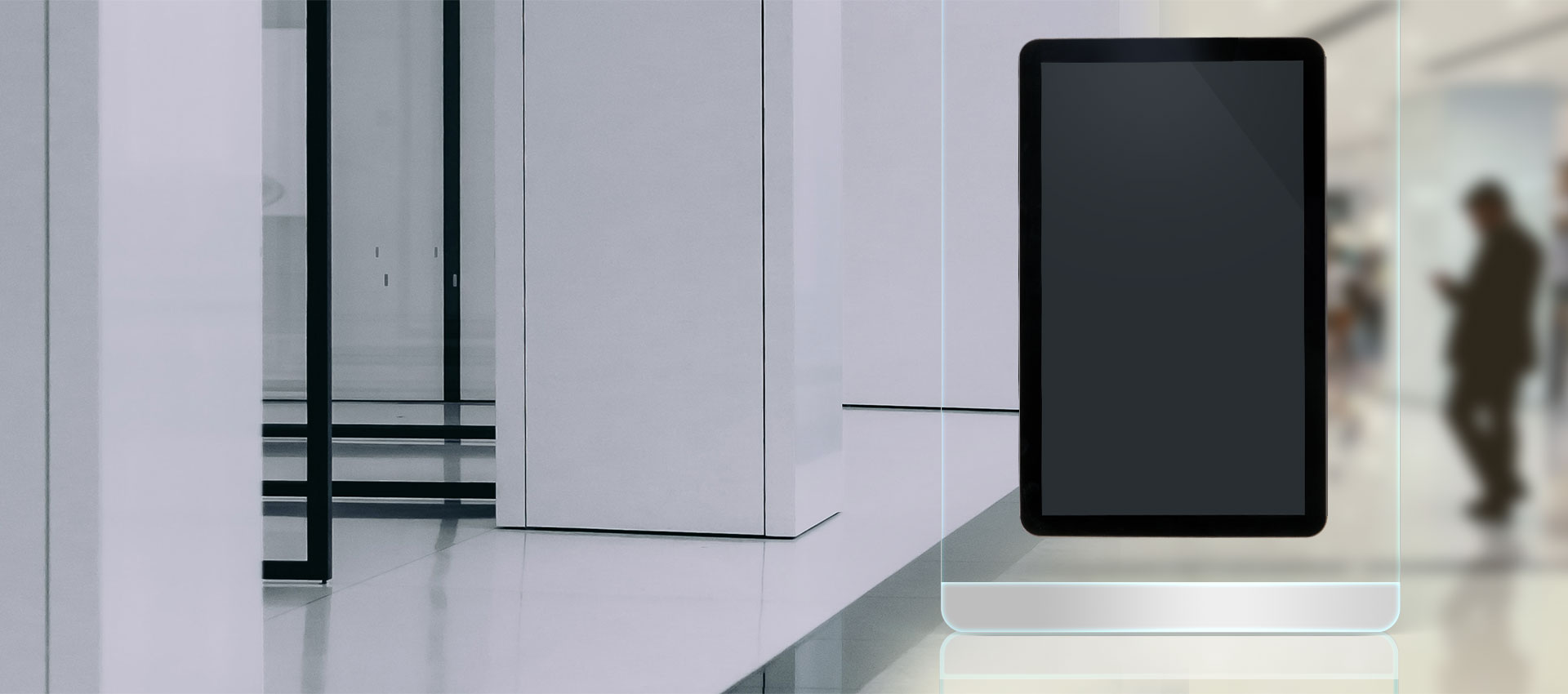

Digital
Signage -
Embedded
-
Wall-Mounted
-
Counter
Top
Different mounting options

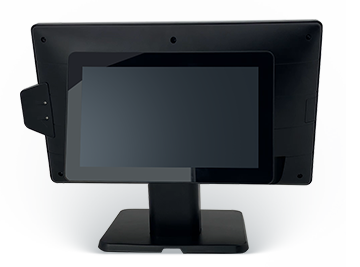

VESA Mounts
Support
75*75(mm) / 100*100(mm) international VESA display mounting interface offers different possibilities of installation.
Durability Design
SPLASH and Dust
Resistant
TouchDisplays is committed to designing best-in-class, durable products. Front IP65 standard splash proof and dust proof make POS series suitable for harsh operating environment, extending its service life.
Appearance Customization
- Dimension
- Installation
- Shell color

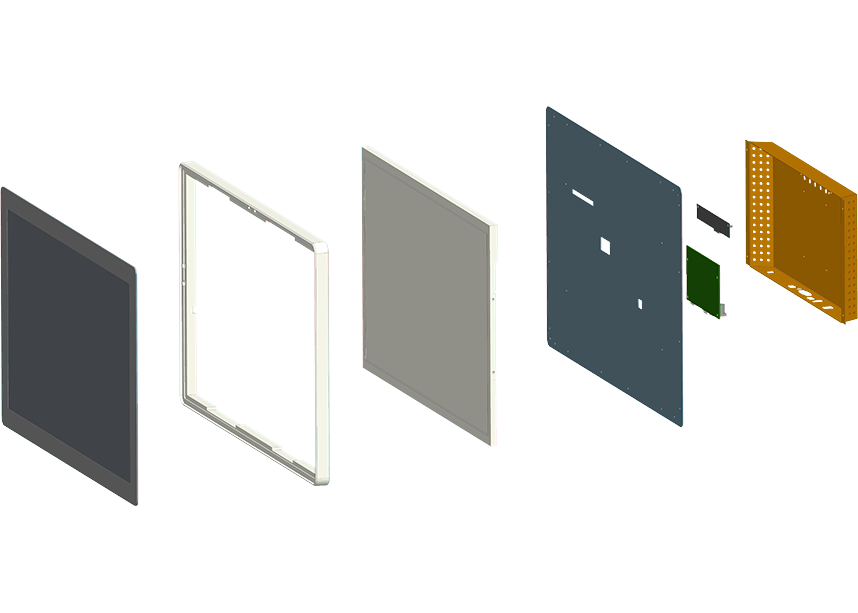

- Structure Design
Function Customization
- Brightness
- Explosion Proof
- Resolution
- Temperature
Built-to-last
TouchDisplays focus on providing excellent reliable and durable products. We promise to use brand new material and control every detail of productions. Touch Monitor is supported by 3 years warranty except the LCD panel for 1 year.
