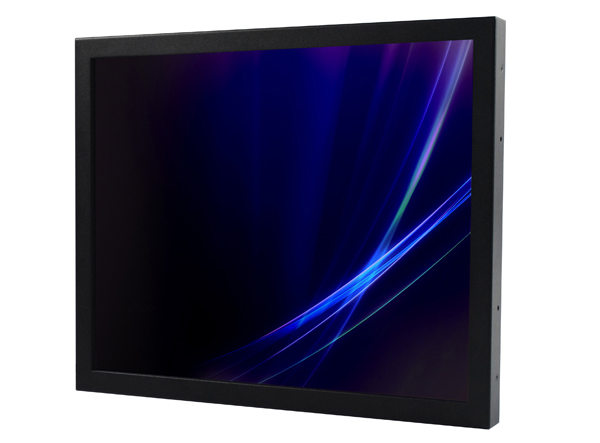

19 Inch Open Frame Touch Monitor

PRODUCTS INTRODUCTION

ACCESSORIES

SPECIFICATION

Open-frame-touch-screen-monitor-7

TouchDisplays open frame LCD touch screen display, featured with optional rack-mount and front-mount bezels and powerful projected capacitive multi touch screen. And we devote ourselves to satisfy all customization requirements, make the touch screens easily meet any application for Casino, Kiosk, Education, Self-services, Industrial automation, Entertainment and Advertising.

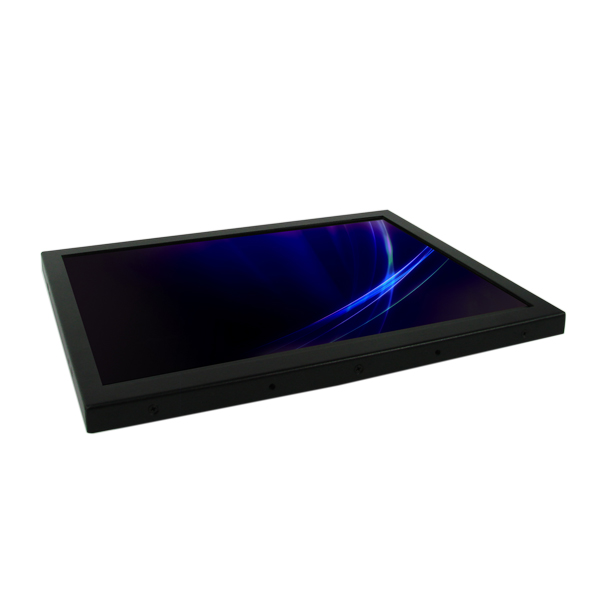

Open-frame-touch-screen-monitor-3

LEADING TOUCH

TouchDisplays use the proven industry-leading touch technology. We offer projected capacitive (PACP) 10 points multi-touch, 5-wire resistive single touch and Infrared (IR) 10 points multi-touch, to meet with different applications.

SPILL AND DUST RESISTANT
Our open frame touch screen offers supper protection against dirt, dust and liquid. And on the front multi touch panel, it obtains an IP 64 rating, makes you free from worry of spill and contamination.

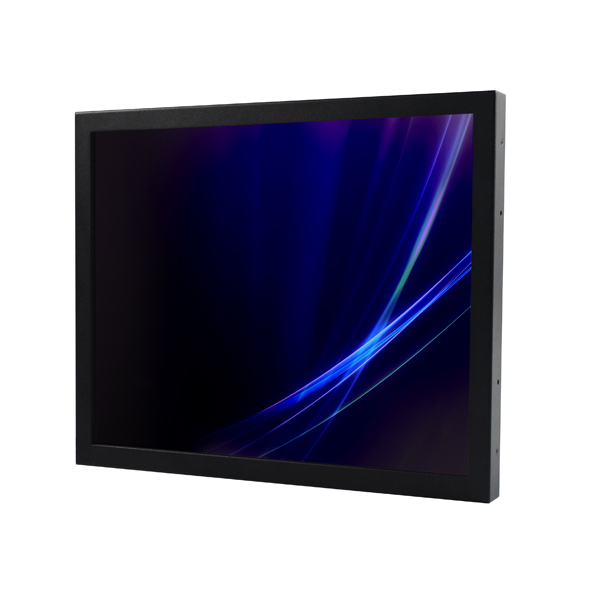

Open-frame-touch-screen-monitor-5

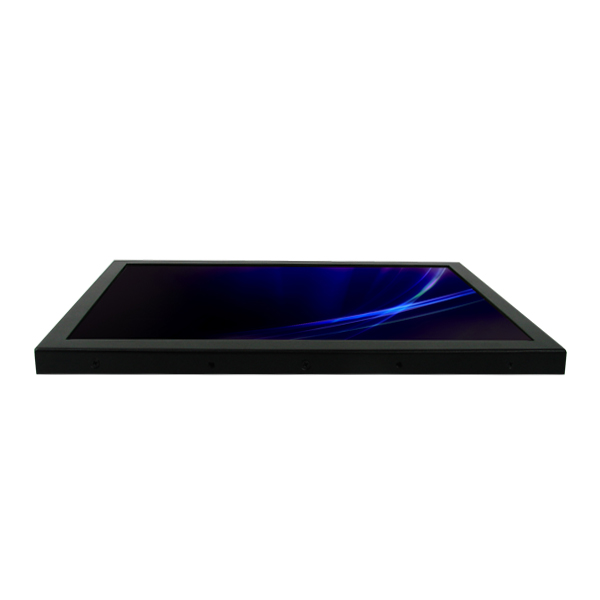

Open-frame-touch-screen-monitor-4

RELIABILITY AND WARRANTY

For all time, TouchDisplays try our best to supply touch screens with the best quality, and 3-year standard warranty is always our base line. We focus on providing reassuring devices for any customer, very single screen will be tested before delivery.

FEATURES

With rack-mount and front-mount bezels, our open frame touch screens are more compatible for installation like side mount, it’s also providing a indurative frame protects it from strike and falling. Compatible VESA mount 75*75/ 100*100 for both wall mounting and kiosk built-in.

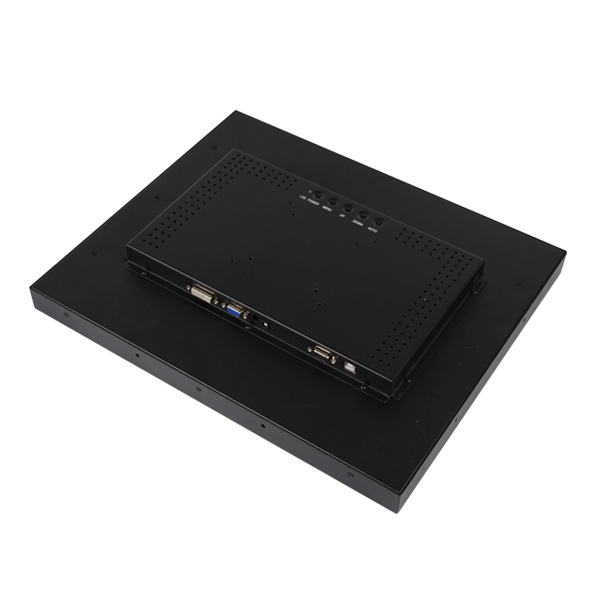

Open-frame-touch-screen-monitor-2

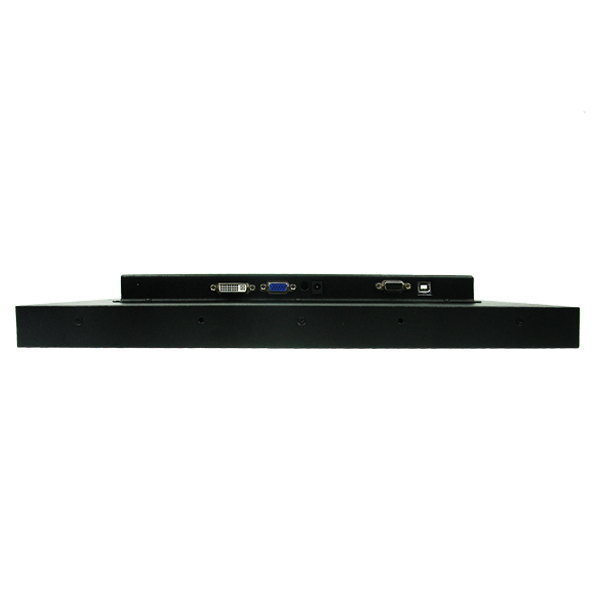

Open-frame-touch-screen-monitor-1

INTERFACE

VAG, HDMI and DVI interfaces to meet your requirements and best performance.

PERIPHERALS-TOUCHDISPLAYS COMPUTER BACKUPS

For your touch screen displays, TouchDisplays offers rugged industrial single board computer backups, with customizable configurations and dimension. Which is a Windows/Android based platform with high expansion capability.

Open frame touch screen monitor-6

APPLICATION

Open frame touch screen monitor-10

DRAWINGS

Microsoft Word - 1931L_OT_2010_V01_Specification.doc

  • Previous:
  • Next:

  • Open frame touch screen monitor-6

    PERIPHERALS-TOUCHDISPLAYS COMPUTER BACKUPS

    For your touch screen displays, TouchDisplays offers rugged industrial single board computer backups, with customizable configurations and dimension.

    Which is a Windows/Android based platform with high expansion capability.

    Model

    1931E-OT

    Case/Bezel Color

    Blackwhite

    Display Size

    19.0″

    Touch panel

    SAW & Resistive

    Touch response time

    10ms(SAW typical) & 5ms(Resistive typical)

    Touchmonitors Dimensions

    415.0 x 343.0 x 54mm

    LCD Type

    TFT LCD(LED backlight)

    Useful Screen Area

    376 mm x 304 mm

    Aspect ratio

    5:4

    Optimal (native) Resolution

    1280 x 1024

    LCD panel Pixel pitch

    0.297 x 0.297 mm

    LCD panel Colors

    16.7 million

    LCD panel Brightness

    250 cd/m2 (customized for 1000 cd/m2)

    LCD panel Response Time

    8 ms

    Viewing Angle

    (typical, from center)

    Horizontal

    ±80° or 160° total

    Vertical

    ±80° or 160° total

    Contrast Ratio

    800:1

    Input Video signal connector

    Mini D-Sub 15-Pin VGA type and HDMI type or DVI type optional

    Input Touch signal connector

    USB or COM(optional)

    Power Supply Type

    Monitor input interface: +12VDC ±5%,4.0 A; DC Jack (2.5)

    AC to DC power brick input: 100-240 VAC, 50/60 Hz

    Power Consumption: 18W

    On-screen display(OSD)

    Controls(back): PowerMenuUpDownAuto;

    Settings: Contrast, Brightness, H/V position;

    RGB(color temp),Clock, Phase, Recall;

    Languages: English, German, French ,Spanish, Japanese, Italy, Chinese;

    Temperature

    Operating: 0°C to 40°C ;Storage -20°C to 60°C

    Humidity (non-condensing)

    Operating: 20%-80%; Storage: 10%-90%

    Shipping Carton Dimensions

    470 x 210 x 420mm

    Weight (approx.)

    Actual: 3.8 kg ;Shipping: 5.2 kg

    Warranty Monitor

    3 years(Except for LCD panel 1 year)

    Backlight lamp life: typical 50,000 hours to half brightness

    Agency Approvals

    CE FCC RoHS(UL or GS Customized)

    Mounting Options

    75 mm and 100 mm VESA mount
