15 Inch POS Terminals

15 inch Touch All-In-One POS Specification
Model 1515E-IDT 1515G-IDT
Case/Bezel Color Black/Silvery/White(Customized) with power coating process
Body Material Aluminum alloy
Touch Panel (True-flat Style Projected Capacitive touch screen
Touch Response Time 2.2ms 8ms
Touch POS Computer Dimensions 372x 212 x 318 mm
LCD Panel Type TFT LCD(LED backlight)
LCD Panel (SizeBrandModel number) 15.0″ AUOG150XTN03.5
LCD Panel Display Mode TN,Normally white
LCD Panel Useful Screen Area 304.128 mm x 228.096 mm
Aspect ratio 4:3
Optimal (native) Resolution 1024 x 768
LCD Panel Typical Power Consumption 7.5W(all black pattern)
LCD Panel Surface Treatment Anti-glare, Hardness 3H
LCD Panel Pixel Pitch 0.099 x 0.297 mm  0.297 x 0.297 mm
LCD panel Colors 16.7 M / 262K colors
LCD panel Color Gamut 60%
LCD panel Brightness 350 cd/㎡
Contrast Ratio 1000∶1 800∶1
LCD Panel Response Time 18 ms
Viewing Angle (typical, from center) Horizontal CR=10 80° (left), 80° (right)
Vertical CR=10 70° (upper), 80° (Lower)
Output Video signal connector Mini D-Sub 15-Pin VGA type and HDMI type (optional)
Input Interface USB 2.0*2 & USB 3.0*2 & 2*COM(3*COM optional)
1*Earphone1*Mic1*RJ45(2*RJ45 optional)
Extend interface usb2.0usb3.0comPCI-E(4G SIM card, wifi 2.4G&5G & Bluetooth module optional)M.2(for CPU J4125)
Power Supply Type Monitor Input: +12VDC ±5%,5.0 A; DC Jack (2.5¢) AC to DC Power Brick Input: 100-240 VAC, 50/60 Hz Total Power Consumption: Less Than 60W
ECM (Embed Computer Module) ECM3: Intel processor (J1900&J4125) ECM4: Intel processor i3(4th -10th) or 3965U ECM5: Intel processor i5(4th -10th) ECM6: Intel processor i7(4th -10th) Memory:DDR3 4G-16G Optional;DDR4 4G-16G Optional (Only for CPU J4125) ; Storage:Msata SSD 64G-960G optional or HDD 1T-2TB optional; ECM8: RK3288; Rom:2G; Flash:16G; Operation System: 7.1 ECM10: RK3399; Rom:4G; Flash:16G; Operation System: 10.0
LCD Panel Temperature Operating: 0°C to +65°C; Storage -20°C to +65°C(+65°C as panel surface temperature)
Humidity (non-condensing) Operating: 20%-80%; Storage: 10%-90%
Shipping Carton Dimensions 450 x 280 x 470 mm(Typ.);
Weight (approx.) Actual: 6.8 kg(Typ.) ;Shipping: 8.2 kg(Typ.)
Warranty Monitor 3 Years(Except for LCD panel 1 year)
LCD Panel Operating Life 50,000 hours
Agency Approvals CE/FCC/RoHS (UL & GS & TUV customized)
Mounting Options 75 mm and 100mm VESA Mount(Remove Stand)
Optional 1: Customer Display
Second Display Monitor 0971E-DM
Case/Bezel Color Black/Silvery/White
Display Size  9.7″
Style True Flat
Monitor Dimensions 268.7 x 35.0 x 204 mm
LCD Type TFT LCD(LED backlight)
Useful Screen Area 196.7 mm x 148.3 mm
Aspect ratio 4∶3
Optimal (native) Resolution 1024×768
LCD panel Pixel pitch 0.192 x 0.192 mm
LCD panel Colors arrangement RGB-Stripe
LCD panel Brightness 300 cd/㎡
Contrast Ratio 800∶1
LCD panel Response Time 25 ms
Viewing Angle (typical, from center) Horizontal ±85°(left/right) or 170° total
Vertical ±85°(left/right) or 170° total
Power Consumption ≤5W
Backlight lamp life Typical 20,000 hours
input Video signal connector Mini D-Sub 15-Pin VGA or HDMI Optional
Temperature Operating: -0°C to 40°C ;Storage -10°C to 50°C
Humidity (non-condensing) Operating: 20%-80%; Storage: 10%-90%
Weight (approx.) Actual: 1.4 kg ;
Warranty Monitor 3 Years(Except for LCD panel 1 year)
Agency Approvals CE/FCC/RoHS (UL & GS & TUV customized)
Mounting Options  75&100 mm VESA mount
Option 2: VFD
VFD VFD-USB or VFD-COM (USB or COM Optional)
Case/Bezel Color Black/Silvery/White(Customized)
Display method Vacuum Fluorescent Display Blue Green
Number of Characters 20 x 2 for 5 x 7 dot matrix
Brightness 350~700 cd/㎡
Character Font 95 Alphanumeric & 32 International Characters
Interface RS232/USB
Character Size 5.25(W) x 9.3(H)
Dot Size(X*Y) 0.85* 1.05 mm
Dimension 230*32*90 mm
Power 5V DC
Command CD5220, EPSON POS, Aedex, UTC/S, UTC/E, ADM788, DSP800, EMAX, LOGIC CONTROL
Language (0×20-0x7F) U.S.A, FRANCE, GERMANY, U.K, DENMARKI, DENMARKII, SWEDEN, ITALY, SPAIN, PAN, NORWAY, SLAVONIC, RUSSIA
Warranty Monitor  1 Year
Optional 3: MSR (Card Reader)
MSR (Card Reader) 1515E MSR 1515G MSR
Interface USB, Real Plug and Play Support ISO7811, Standard card format, CADMV, AAMVA, and so on; Device type can be found through the Device Manager; Supports a variety of standard data formats and ISO magnetic card data formats of various non-target reading.
Reading Speed 6.3 ~ 250 cm/sec
Power supply 50mA±15%
Head life More than 1000000 times LED indication, no buzzer Volume (length X width X height): 58.5*83*77mm
Warranty Monitor 1 Year
Materials ABS
Weight 132.7g
Operating temperature -10℃ ~ 55 ℃
Humidity 90% non-condensing
15 inch

15 inch

POS TERMINALS

Inherit the classic
1-2
  • Splash and dust proof Splash and dust proof
  • Hidden cable design Hidden cable design
  • Zero bezel & true-flat screen design Zero bezel & true-flat screen design

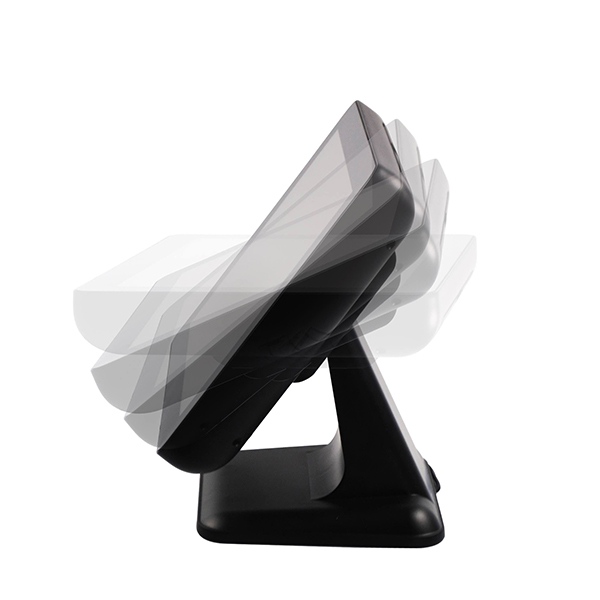

  • Angle adjustable display Angle adjustable display
  • Support various accessories Support various accessories
  • Support 10 points touch Support 10 points touch
  • 3 years warranty 3 years warranty
  • Full aluminum casing Full aluminum casing
  • Support ODM&OEM Support ODM&OEM
display

display

The PCAP touch screen adopts true-flat, zero-bezel design which enhances the performance, durability and user experience. Through the unique designed screen, staff could get more intuitive and clear human-machine communication.
  • 15″
    15″ TFT LCD PCAP Screen
  • 350
    350 Nits Brightness
  • 1024*768
    1024*768 resolution
  • 4:3
    4:3 Contrast Ratio
Configuration

Configuration

  • CPU CPU
    ROM ROM
  • RAM RAM
    WINDOWS WINDOWS
  • ANDROID ANDROID
    LINUX LINUX
design

design2

all aluminum casing

Makes the whole machine durable.
Form a strong surface protection.
design2

operational design

ten points touch

TouchDisplays provides a screen that supports multi-touch. It helps employees to be more arbitrary in their daily operations and increase work efficiency.
operational design
durability design

durability designdurability design

ten points touch

IP65 standard (front) spill proof protects the screen from water erosion, enhance service life.
interfaces

interfaces

The different interfaces make the products available for all POS peripherals. From cash drawers, printer, scanner to other equipment, it ensures the all cover of peripherals.
customized <br>service

customized
service

always looking forward to your needs

TouchDisplays always looks forward to responding to customers' needs for unique products. We can either propose solutions according to your needs, or make customized products according to your requirements.
hidden-cable <br>design

hidden-cable
design

adopt distinctive cable management

Keep the counter simple and clean due to hiding all cables in the stand.

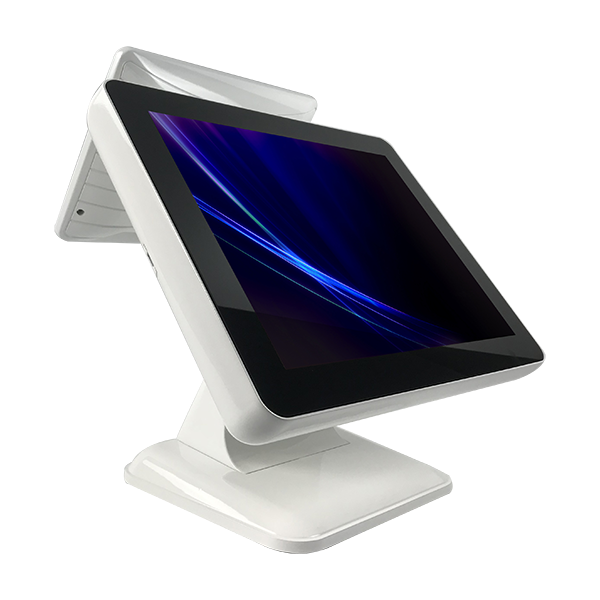

product
show

Morden design concept conveys advanced vision.
  • 12-1
  • 12-2
  • 12-3
  • 12-4
  • 12-5
  • 12-6
  • 12-7
  • 12-8
peripheral support

peripheral support

attract more consumers

POS Terminals support all POS accessories, for example, customer display. It could deliver information of goods, advertising information or other events. Create unique value and more sales opportunities.
  • Customer Display Customer Display
    Cash Drawer Cash Drawer
  • Printer Printer
    Scanner Scanner
  • VFD VFD
    Card Reader Card Reader

application

favourable in any retail and hospitality environment

Easily handle business in vairous occasions, Become the outstanding assistant.
  • supermarket

    supermarket

  • bar

    bar

  • hotel

    hotel

  • Movie Theater

    Movie Theater
