| 15 inch Touch All-In-One POS Specification | |||
| Model | 1515E-IDT | 1515G-IDT | |
| Case/Bezel Color | Black/Silvery/White(Customized) with power coating process | ||
| Body Material | Aluminum alloy | ||
| Touch Panel (True-flat Style | Projected Capacitive touch screen | ||
| Touch Response Time | 2.2ms | 8ms | |
| Touch POS Computer Dimensions | 372x 212 x 318 mm | ||
| LCD Panel Type | TFT LCD(LED backlight) | ||
| LCD Panel (SizeBrandModel number) | 15.0″ AUOG150XTN03.5 | ||
| LCD Panel Display Mode | TN,Normally white | ||
| LCD Panel Useful Screen Area | 304.128 mm x 228.096 mm | ||
| Aspect ratio | 4:3 | ||
| Optimal (native) Resolution | 1024 x 768 | ||
| LCD Panel Typical Power Consumption | 7.5W(all black pattern) | ||
| LCD Panel Surface Treatment | Anti-glare, Hardness 3H | ||
| LCD Panel Pixel Pitch | 0.099 x 0.297 mm | 0.297 x 0.297 mm | |
| LCD panel Colors | 16.7 M / 262K colors | ||
| LCD panel Color Gamut | 60% | ||
| LCD panel Brightness | 350 cd/㎡ | ||
| Contrast Ratio | 1000∶1 | 800∶1 | |
| LCD Panel Response Time | 18 ms | ||
| Viewing Angle (typical, from center) |
Horizontal CR=10 | 80° (left), 80° (right) | |
| Vertical CR=10 | 70° (upper), 80° (Lower) | ||
| Output Video signal connector | Mini D-Sub 15-Pin VGA type and HDMI type (optional) | ||
| Input Interface | USB 2.0*2 & USB 3.0*2 & 2*COM(3*COM optional) | ||
| 1*Earphone1*Mic1*RJ45(2*RJ45 optional) | |||
| Extend interface | usb2.0usb3.0comPCI-E(4G SIM card, wifi 2.4G&5G & Bluetooth module optional)M.2(for CPU J4125) | ||
| Power Supply Type | Monitor Input: +12VDC ±5%,5.0 A; DC Jack (2.5￠) AC to DC Power Brick Input: 100-240 VAC, 50/60 Hz Total Power Consumption: Less Than 60W |
||
| ECM (Embed Computer Module) |
ECM3: Intel processor (J1900&J4125) ECM4: Intel processor i3(4th -10th) or 3965U ECM5: Intel processor i5(4th -10th) ECM6: Intel processor i7(4th -10th) Memory:DDR3 4G-16G Optional;DDR4 4G-16G Optional (Only for CPU J4125) ; Storage:Msata SSD 64G-960G optional or HDD 1T-2TB optional; ECM8: RK3288; Rom:2G; Flash:16G; Operation System: 7.1 ECM10: RK3399; Rom:4G; Flash:16G; Operation System: 10.0 |
||
| LCD Panel Temperature | Operating: 0°C to +65°C; Storage -20°C to +65°C(+65°C as panel surface temperature) | ||
| Humidity (non-condensing) | Operating: 20%-80%; Storage: 10%-90% | ||
| Shipping Carton Dimensions | 450 x 280 x 470 mm(Typ.); | ||
| Weight (approx.) | Actual: 6.8 kg(Typ.) ;Shipping: 8.2 kg(Typ.) | ||
| Warranty Monitor | 3 Years(Except for LCD panel 1 year) | ||
| LCD Panel Operating Life | 50,000 hours | ||
| Agency Approvals | CE/FCC/RoHS (UL & GS & TUV customized) | ||
| Mounting Options | 75 mm and 100mm VESA Mount(Remove Stand) | ||

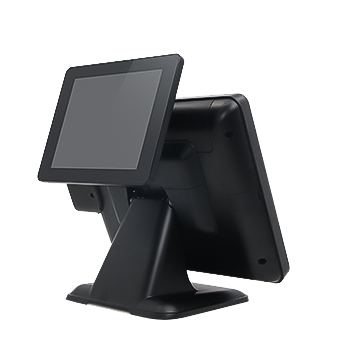

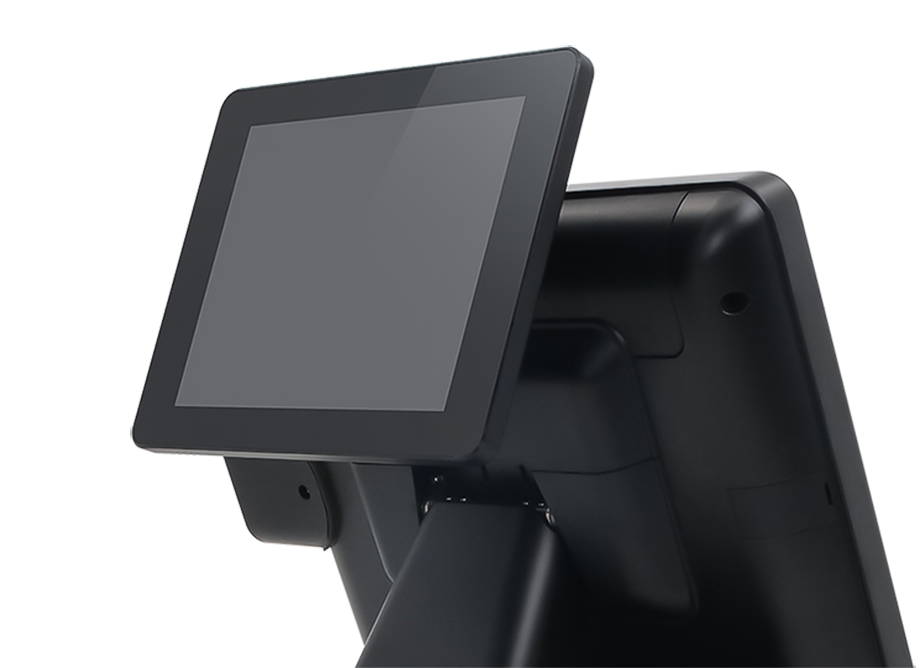

| Optional 1: Customer Display | |||
| Second Display Monitor | 0971E-DM | ||
| Case/Bezel Color | Black/Silvery/White | ||
| Display Size | 9.7″ | ||
| Style | True Flat | ||
| Monitor Dimensions | 268.7 x 35.0 x 204 mm | ||
| LCD Type | TFT LCD(LED backlight) | ||
| Useful Screen Area | 196.7 mm x 148.3 mm | ||
| Aspect ratio | 4∶3 | ||
| Optimal (native) Resolution | 1024×768 | ||
| LCD panel Pixel pitch | 0.192 x 0.192 mm | ||
| LCD panel Colors arrangement | RGB-Stripe | ||
| LCD panel Brightness | 300 cd/㎡ | ||
| Contrast Ratio | 800∶1 | ||
| LCD panel Response Time | 25 ms | ||
| Viewing Angle (typical, from center) |
Horizontal | ±85°(left/right) or 170° total | |
| Vertical | ±85°(left/right) or 170° total | ||
| Power Consumption | ≤5W | ||
| Backlight lamp life | Typical 20,000 hours | ||
| input Video signal connector | Mini D-Sub 15-Pin VGA or HDMI Optional | ||
| Temperature | Operating: -0°C to 40°C ;Storage -10°C to 50°C | ||
| Humidity (non-condensing) | Operating: 20%-80%; Storage: 10%-90% | ||
| Weight (approx.) | Actual: 1.4 kg ; | ||
| Warranty Monitor | 3 Years(Except for LCD panel 1 year) | ||
| Agency Approvals | CE/FCC/RoHS (UL & GS & TUV customized) | ||
| Mounting Options | 75&100 mm VESA mount | ||
| Option 2: VFD | |||
| VFD | VFD-USB or VFD-COM (USB or COM Optional) | ||
| Case/Bezel Color | Black/Silvery/White(Customized) | ||
| Display method | Vacuum Fluorescent Display Blue Green | ||
| Number of Characters | 20 x 2 for 5 x 7 dot matrix | ||
| Brightness | 350~700 cd/㎡ | ||
| Character Font | 95 Alphanumeric & 32 International Characters | ||
| Interface | RS232/USB | ||
| Character Size | 5.25(W) x 9.3(H) | ||
| Dot Size(X*Y) | 0.85* 1.05 mm | ||
| Dimension | 230*32*90 mm | ||
| Power | 5V DC | ||
| Command | CD5220, EPSON POS, Aedex, UTC/S, UTC/E, ADM788, DSP800, EMAX, LOGIC CONTROL | ||
| Language (0×20-0x7F) | U.S.A, FRANCE, GERMANY, U.K, DENMARKI, DENMARKII, SWEDEN, ITALY, SPAIN, PAN, NORWAY, SLAVONIC, RUSSIA | ||
| Warranty Monitor | 1 Year | ||

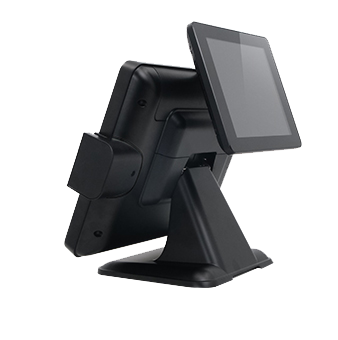

| Optional 3: MSR (Card Reader) | |||
| MSR (Card Reader) | 1515E MSR | 1515G MSR | |
| Interface | USB, Real Plug and Play Support ISO7811, Standard card format, CADMV, AAMVA, and so on; Device type can be found through the Device Manager; Supports a variety of standard data formats and ISO magnetic card data formats of various non-target reading. |
||
| Reading Speed | 6.3 ~ 250 cm/sec | ||
| Power supply | 50mA±15% | ||
| Head life | More than 1000000 times LED indication, no buzzer Volume (length X width X height): 58.5*83*77mm |
||
| Warranty Monitor | 1 Year | ||
| Materials | ABS | ||
| Weight | 132.7g | ||
| Operating temperature | -10℃ ~ 55 ℃ | ||
| Humidity | 90% non-condensing | ||

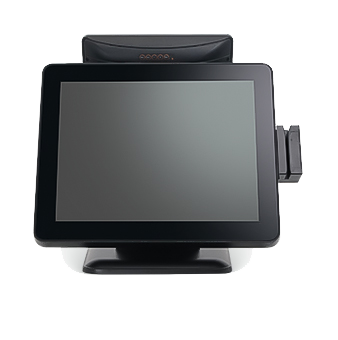

15 inch
POS
TERMINALS
Inherit the classic
-
Splash and dust proof
-
Hidden cable design
-
Zero bezel & true-flat screen design
-
Angle adjustable display
-
Support various accessories
-
Support 10 points touch
-
3 years warranty
-
Full aluminum casing
-
Support
ODM&OEM
display

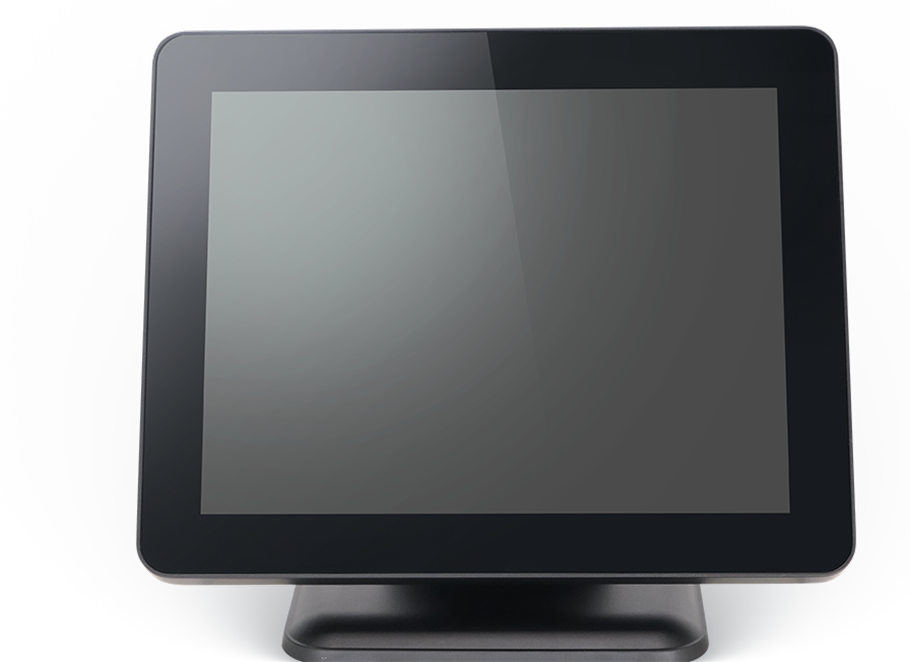

The PCAP touch screen adopts true-flat, zero-bezel design which enhances the performance, durability and user experience. Through the unique designed screen, staff could get more intuitive and clear human-machine communication.
-
15″ TFT LCD PCAP Screen -
350 Nits Brightness -
1024*768 resolution -
4:3 Aspect Ratio
Configuration
From Processor, RAM, ROM to System.（Support Windows, Android and Linux）. Make your own product by various choices of configuration.
-
CPU
WINDOWS
-
ROM
ANDROID
-
RAM
LINUX

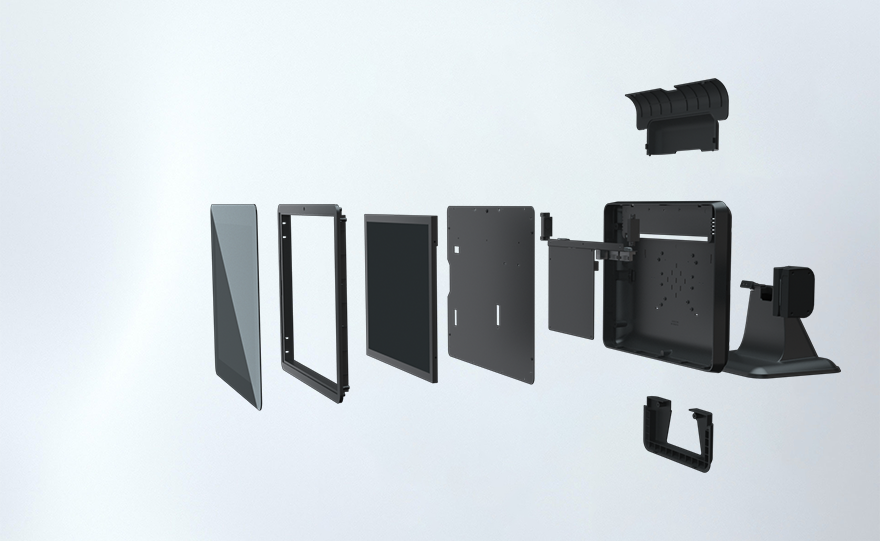

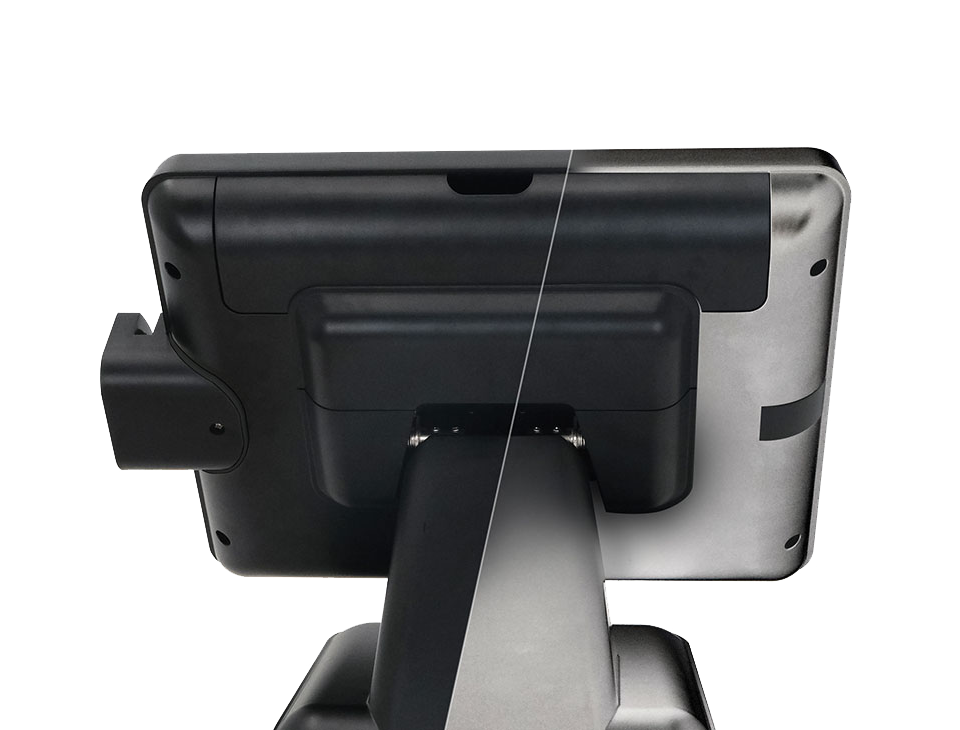

design
all aluminum
casing
Makes the whole machine durable.
Form a strong surface protection.
Form a strong surface protection.

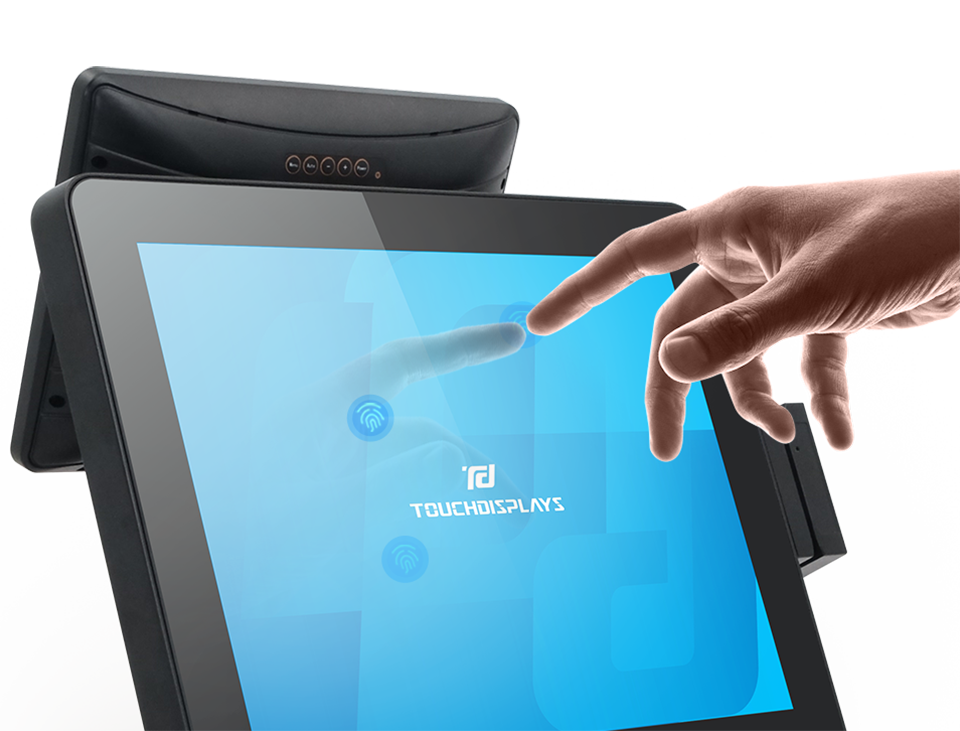

operational design
ten points
touch
TouchDisplays provides a screen that supports multi-touch. It helps employees to be more arbitrary in their daily operations and increase work efficiency.

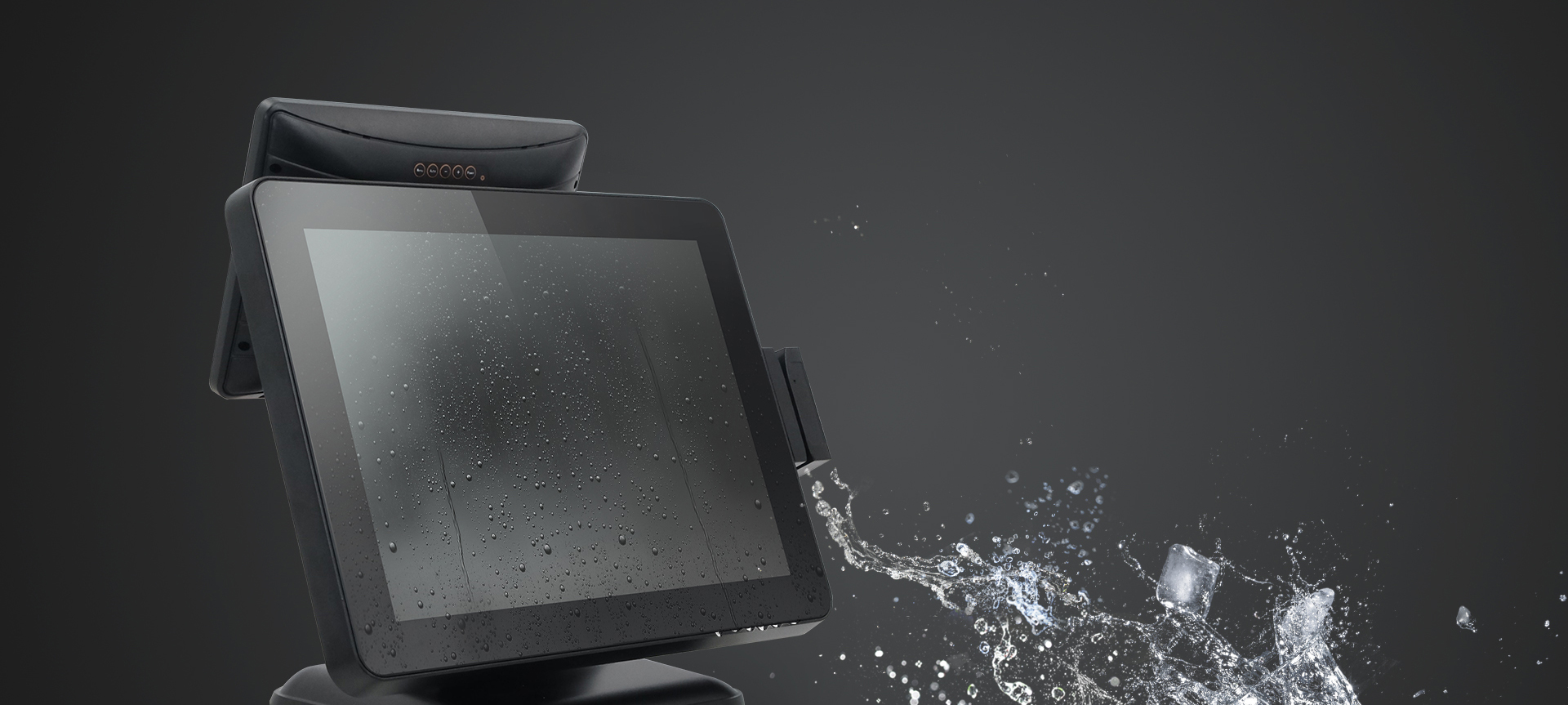

durability design
splash
and dust proof
IP65 standard (front) spill proof protects the screen from water erosion, enhance service life.

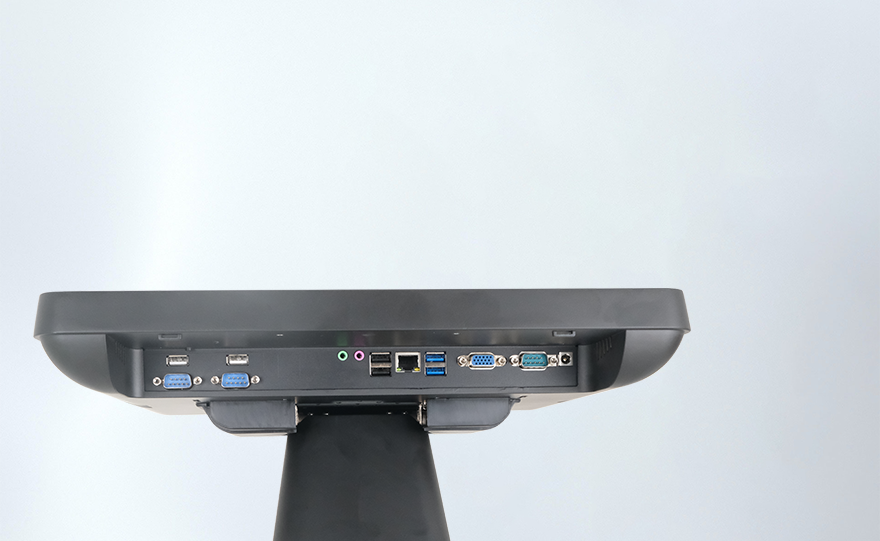

interfaces
The different interfaces make the products available for all POS peripherals. From cash drawers, printer, scanner to other equipment, it ensures the all cover of peripherals.
customized
service
always looking forward
to your needs
TouchDisplays always looks forward to responding to customers' needs for unique products. We can either propose solutions according to your needs, or make customized products according to your requirements.

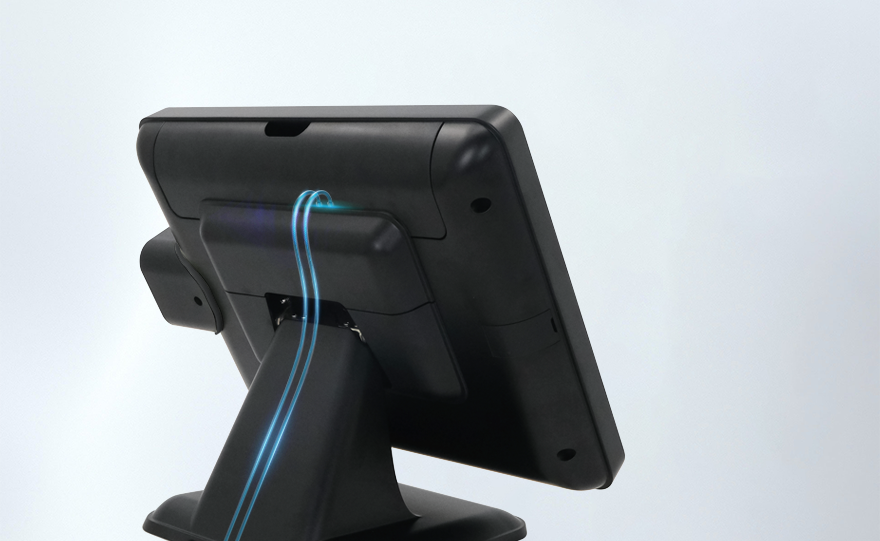

hidden-cable
design
adopt distinctive cable management
Keep the counter simple and clean due to hiding all cables in the stand.

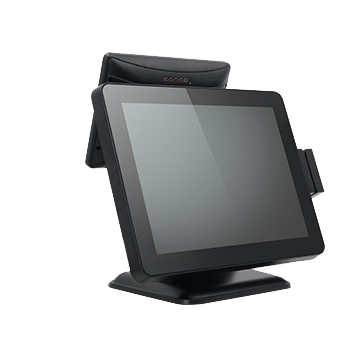

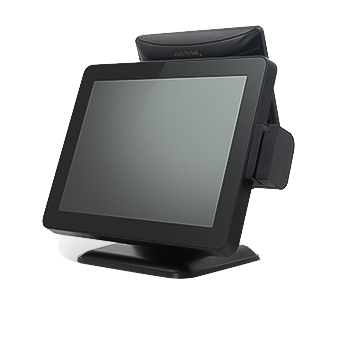

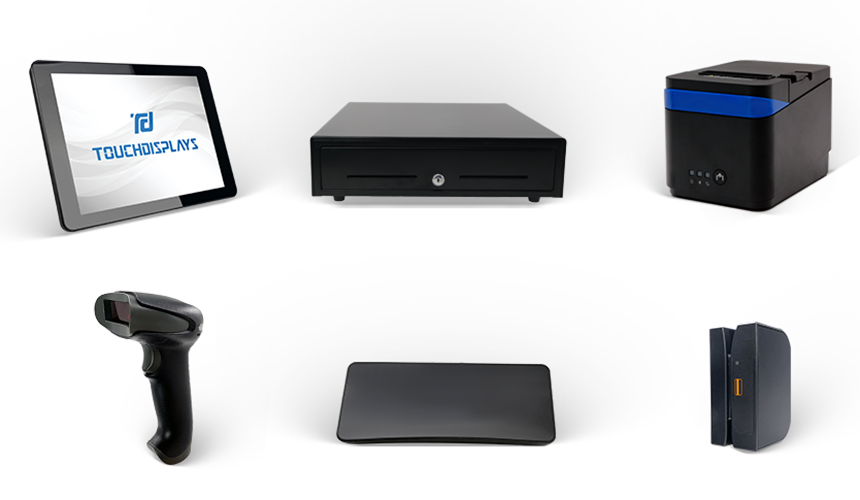

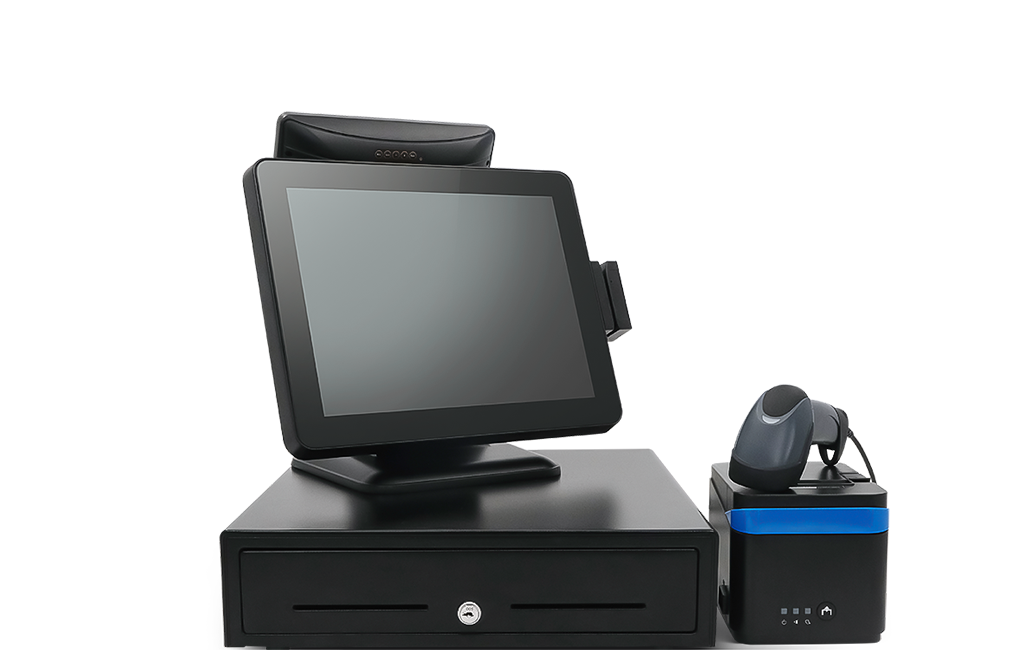

peripheral support
attract more consumers

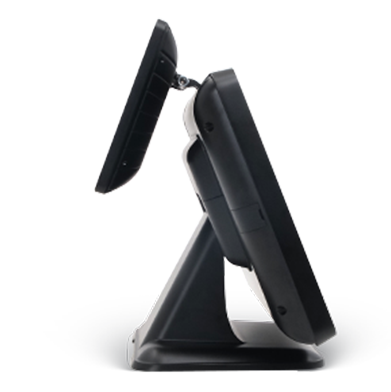

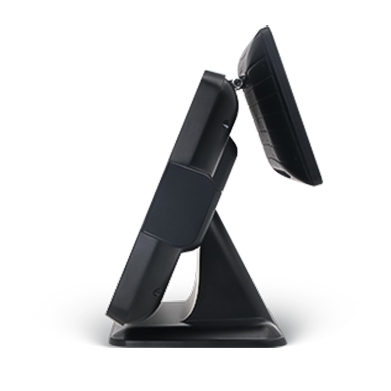

POS Terminals series support all POS accessories, for example, customer display. It could deliver information of goods, advertising information or other events. Create unique value and more sales opportunities.

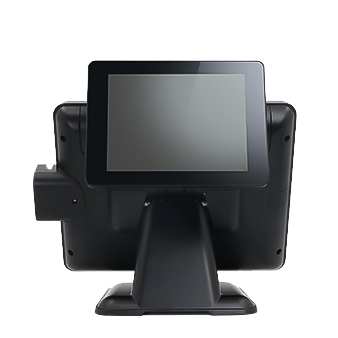

Customer Display
Cash Drawer
Printer
Scanner
VFD
Card Reader
-
supermarket
-
bar
-
hotel
-
Movie Theater
