21.5 Inch True Flat Touch Signage

Overview

Accessories

SPECIFICATION

Contact Us

true flat touch all in one pc (4)

TouchDisplays multifunctional Touch Interactive Digital Signage delivers a powerful Windows-based or Android-based platform. With customized thickness it provides a commercial grade product. Projected multi touch and VESA mount make it meet multi purpose, tempered glass designed to withstand extreme operating environment.









true flat touch all in one pc (3)
true flat touch all in one pc (1)

TouchDisplays interactive signage featured with its multipurpose ability. We do customized kiosks built in or customized thickness to fit your kiosks. With a compatible VESA holes, it’s also able to be wall mounted or floor-stand with a bracket. Benefit from its optional high brightness and true viewing angle, our digital signage is sunlight readable.









true flat touch all in one pc (4)















Extremely powerful and low consumption fanless processors;

Flexible CPU options for different Android versions;

Wide range from Intel j1800 to i7 latest 7th generation for windows.

2151E Touch All In One PC runs critical applications fast, helps you serve your customers even faster.

Fanless processor thus low consumption and a noiseless surrounding.









true flat touch all in one pc (5)









true flat touch all in one pc (6)

INTERFACE

Offered multiple interfaces: HDMI/VGA, USB, Rj45, Mic and others, installation of video input and output is quick and easy. The powered USB is available for more peripheral connections.









true flat touch all in one pc (9)

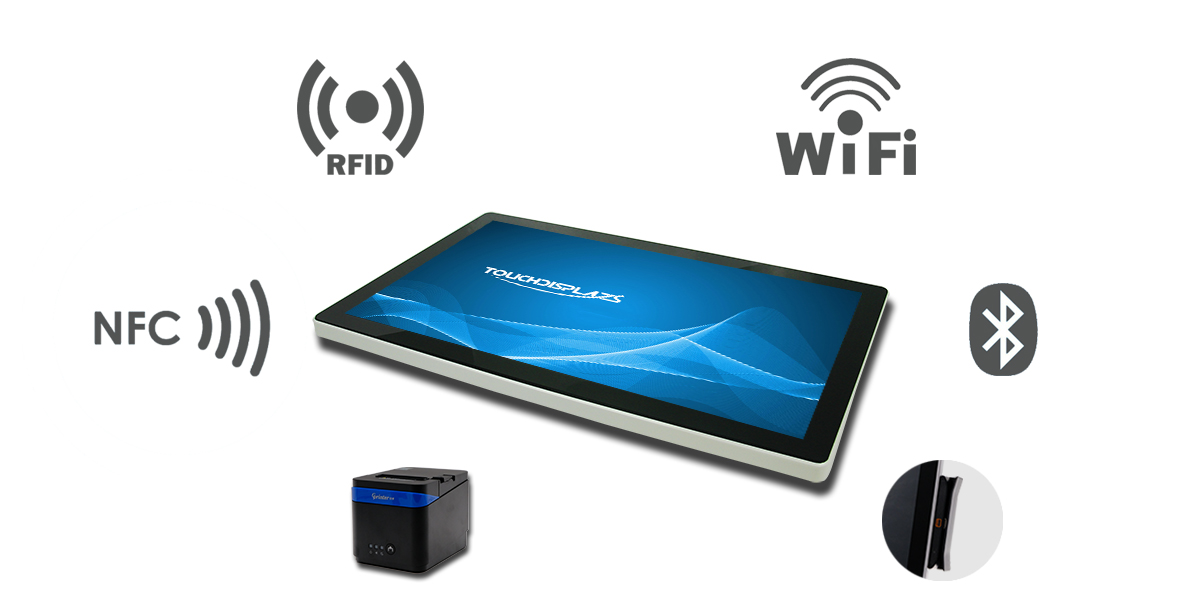

PERIPHERALS

Beyond the powerful PACP multi touch screen display, multiple peripherals are available to meet all kinds of applications, including near-field communication (NFC/RFID), mag strip reader (MSR) thermal printers and others. Built-in WiFi and bluetooth make it able to be connected anytime and anywhere.









APPLICATION

true flat touch all in one pc (8)


























  • Previous:
  • Next:

  • MSR(with iButton)

    Model

    2151E-IOT-F

    Case/Bezel Color

    Blackwhite

    Display Size

    21.5″

    Touch panel

    Projected Capacitive Touch Screen

    Touch points

    10

    Touch response time

    8ms

    TouchAIO Dimensions

    524 x 46 x 315.5 mm

    LCD Type

    TFT LCD(LED backlight)

    Useful Screen Area

    477.8 mm x 269.3 mm

    Aspect ratio

    16:9

    Optimal (native) Resolution

    1920*1080

    LCD panel Pixel pitch

    0.1875 x 0.1875 mm

    LCD panel Colors

    16.7 million

    LCD panel Brightness

    250 cd/m2

    LCD panel Response Time

    16 ms

    Viewing Angle

    (typical, from center)

    Horizontal

    ±89° or 178° total (left/right)

    Vertical

    ±89° or 178° total (up/down)

    Contrast Ratio

    3000:1

    output Video signal connector

    Mini D-Sub 15-Pin VGA type and HDMI type

    Interface

    usb 2.0*4(usb 3.0*2 optional)PCI-E(4G SIM card, wifi and Bluetooth optional)

    Earphone*1Mic*1Com*3RJ45*1

    Power Supply Type

    Monitor input interface: +12VDC ±5%,6.0 A; DC Jack (2.5)

    AC to DC power brick input: 100-240 VAC, 50/60 Hz

    Power Consumption: 50W

     ECM

    (Embed Computer Modul)

    ECM3: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)

    ECM4: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)

    ECM5: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)

    ECM6: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)

    SATA3: HDD 500G(up to 1TB optional) or SDD 32G(up to 128G optional)

    Memory:  DDR3 4G(extend up to 16G Optional)

    CPU Upgrade:J3160 & I3-I7 series 5th 6th 7th optional

    Operation System:Win7Pos Ready7Win8XPWinCEVistaLinux

    ECM9: Cortex-A53 8Core 1.5GHz;GPU: PowerVR G6110

    Rom:1G(up to 2G4G optional);Flash:8G(up to 32G optional)

    Operation System: 5.1 or 6.0

    Temperature

    Operating: 0°C to 40°C ;Storage -20°C to 60°C

    Humidity (non-condensing)

    Operating: 20%-80%; Storage: 10%-90%

    Shipping Carton Dimensions

    620 x 206 x 456 mm (2 PCS)

    Weight (approx.)

    Product Actual: 5.1 kg(1 Piece) ;Shipping: 13.2 kg( 2 PCS)

    Warranty Monitor

    3 years(Except for LCD panel 1 year)

    Backlight lamp life: typical 50,000 hours to half brightness

    Agency Approvals

    CE/FCC/RoHS (UL or GS for Customized)

    Mounting Options

    75 mm and 100 mm VESA mount
