| Model | 1851E-IDT | |
| Case/Bezel Color | Black/Silvery/white(Customized) | |
| Display Size | 18.5″ | |
| Touch panel | Projected Capacitive touch screen | |
| Touch response time | 8ms | |
| Touchcomputors Dimensions | 460.83 x 232.48 x 335.11 mm | |
| LCD Type | TFT LCD(LED backlight) | |
| Useful Screen Area | 409.8 mm x 230.4 mm | |
| Aspect ratio | 16:9 | |
| Optimal (native) Resolution | 1366 x 768 | |
| LCD panel Pixel pitch | 0.3 x 0.3mm | |
| LCD panel Colors Depth | 16.7M | |
| LCD panel Brightness | 250 cd/㎡ | |
| LCD panel Response Time | 14 ms | |
| Viewing Angle (typical, from center) |
Horizontal | ±80° or 160° total |
| Vertical | ±80° or 160° total | |
| Contrast Ratio | 1000:1 | |
| output Video connector | Mini D-Sub 15-Pin VGA type and HDMI type (optional) | |
| Input interface | USB 2.0*2 & USB 3.0*2 & 2*COM(3*COM optional) | |
| 1*Earphone1*Mic1*RJ45(2*RJ45 optional) | ||
| Extend interface | usb2.0usb3.0comPCI-E(4G SIM card, wifi 2.4G&5G & Bluetooth module optional)M.2(for CPU J4125) | |
| Power Supply Type | Monitor input: +12V DC ±5%,5.0 A; DC Jack(2.5￠) | |
| AC to DC power brick input: 90-240 VAC, 50/60 Hz | ||
| Power Consumption: Less than 40W | ||
| ECM (Embed Computer Module) |
ECM3: Intel processor (J1900&J4125) ECM4: Intel processor i3(4th -10th) or 3965U ECM5: Intel processor i5(4th -10th) ECM6: Intel processor i7(4th -10th) Memory:DDR3 4G-16G Optional;DDR4 4G-16G Optional (Only for CPU J4125) ; Storage:Msata SSD 64G-960G optional or HDD 1T-2TB optional; ECM8: RK3288; Rom:2G; Flash:16G; Operation System: 7.1 ECM10: RK3399; Rom:4G; Flash:16G; Operation System: 10.0 |
|
| Temperature | Operating: 0°C to 40°C ;Storage -20°C to 60°C | |
| Humidity (non condensing) | Operating: 20%-80%; Storage: 10%-90% | |
| Shipping Carton Dimensions | 540*260*426 mm(with stand) | |
| Weight (approx.) | Actual: 6.65 kg ;Shipping: 7 kg | |
| Warranty Monitor | 3 years(Except for LCD panel 1 year) | |
| Backlight lamp life: typical15,000 hours to half brightness | ||
| Agency Approvals | CE/FCC/RoHS (UL & GS & CB & TUV customized) | |
| Mounting Options | 75 mm and 100mm VESA mount | |
Optional 1: Customer Display
| Second Display Monitor | 1161E-DM | |
| Case/Bezel Color | Black/Silvery/White | |
| Display Size | 11.6″ | |
| Style | True Flat | |
| Monitor Dimensions | 291 x 45.1 x 180mm | |
| LCD Type | TFT LCD(LED backlight) | |
| Useful Screen Area | 256.32mm x 144.18mm | |
| Aspect ratio | 16:9 | |
| Optimal (native) Resolution | 1920×1080 | |
| LCD panel Pixel pitch | 0.1335 x 0.1335 mm | |
| LCD panel Colors arrangement | RGB-Stripe | |
| LCD panel Brightness | 300 cd/㎡ | |
| Contrast Ratio | 1000:1 | |
| LCD panel Response Time | 25 ms | |
| Viewing Angle (typical, from center) |
Horizontal | ±89°(left/right) or 178° total |
| Vertical | ±85°(left/right) or 170° total | |
| Power Consumption | ≤5W | |
| Backlight lamp life | typical 20,000 hours | |
| input Video signal connector | Mini D-Sub 15-Pin VGA or HDMI Optional | |
| Temperature | Operating: -0°C to 40°C ;Storage -10°C to 50°C | |
| Humidity (non-condensing) | Operating: 20%-80%; Storage: 10%-90% | |
| Weight (approx.) | Actual: 1.5 kg ; | |
| Warranty Monitor | 3 Years(Except for LCD panel 1 year) | |
| Agency Approvals | CEFCCRoHS(GS & UL for customized) | |
| Mounting Options | 75&100 mm VESA mount | |
Option 2: VFD
| VFD | VFD-USB or VFD-COM (USB or COM Optional) | |
| Case/Bezel Color | Black/Silvery/White(Customized) | |
| Display method | Vacuum Fluorescent Display Blue Green | |
| Number of Characters | 20 x 2 for 5 x 7 dot matrix | |
| Brightness | 350~700 cd/㎡ | |
| Character Font | 95 Alphanumeric & 32 International Characters | |
| Interface | RS232/USB | |
| Character Size | 5.25(W) x 9.3(H) | |
| Dot Size(X*Y) | 0.85* 1.05 mm | |
| Dimension | 230*32*90 mm | |
| Power | 5V DC | |
| Command | CD5220, EPSON POS, Aedex, UTC/S, UTC/E, ADM788, DSP800, EMAX, LOGIC CONTROL | |
| Language (0×20-0x7F) |
U.S.A, FRANCE, GERMANY, U.K, DENMARKI, DENMARKII, SWEDEN, ITALY, SPAIN, PAN, NORWAY, SLAVONIC, RUSSIA | |
| Warranty Monitor | 1 Year | |
Optional 3: MSR (Card Reader)
| MSR | 1851E MSR | |
| Interface | USB, Real Plug and Play Support ISO7811, Standard card format, CADMV, AAMVA, and so on; Device type can be found through the Device Manager; Supports a variety of standard data formats and ISO magnetic card data formats of various non-target reading. | |
| Reading Speed | 6.3 ~ 250 cm/sec | |
| Power supply | 50mA±15% | |
| Head life | More than 1000000 times LED indication, no buzzer Volume (length X width X height): 77*84*58.6mm |
|
| Materials | ABS | |
| Weight | 108g | |
| Operating temperature | -10℃ ~ 55 ℃ | |
| Humidity | 90% non-condensing | |
| Warranty Monitor | 1 Year | |
18.5 inch
POS
TERMINALS
Contemporary design
POS
TERMINALS
Contemporary design
-
Splash and dust proof
-
Hidden cable design
-
Zero bezel & true-flat screen design
-
Angle adjustable display
-
Support various accessories
-
Support 10 points touch
-
3 years warranty
-
Customized lighting logo
-
Diversify interfaces

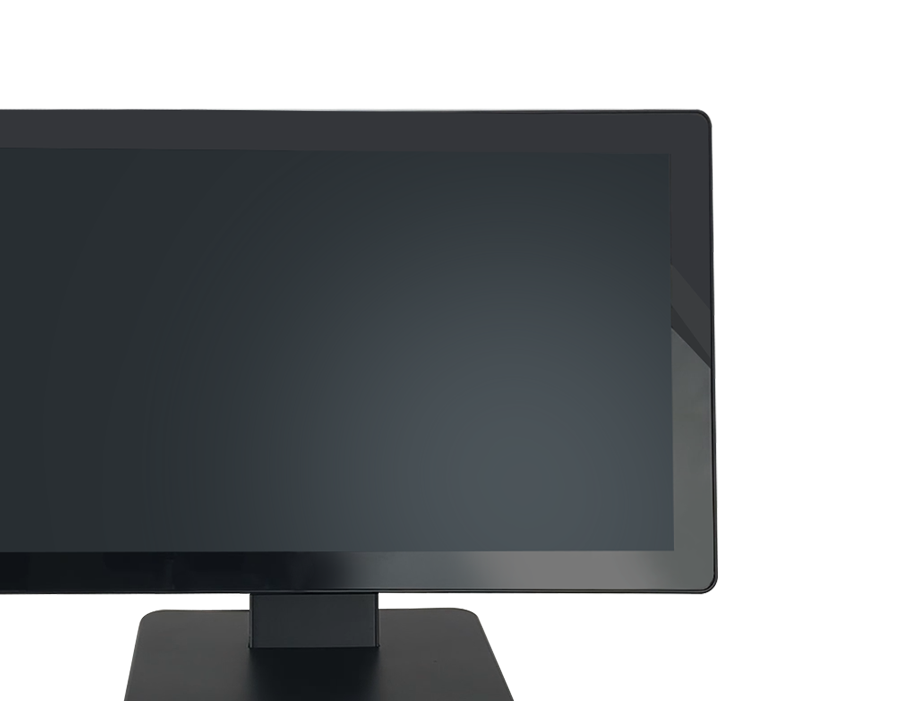

display
The PCAP touch screen adopts true-flat, zero-bezel design which enhances the performance, durability and user experience. Through the unique designed screen, staff could get more intuitive and clear human-machine communication.
-
18.5″ TFT LCD PCAP Screen -
250 Nits Brightness -
1366*768 resolution -
16:9 Wide Touch Screen
Configuration
Multiple choices of processors, RAM, ROM and system(Windows, Android and Linux). Select the most suitable product for your business.
-
CPU
WINDOWS
-
ROM
ANDROID
-
RAM
LINUX

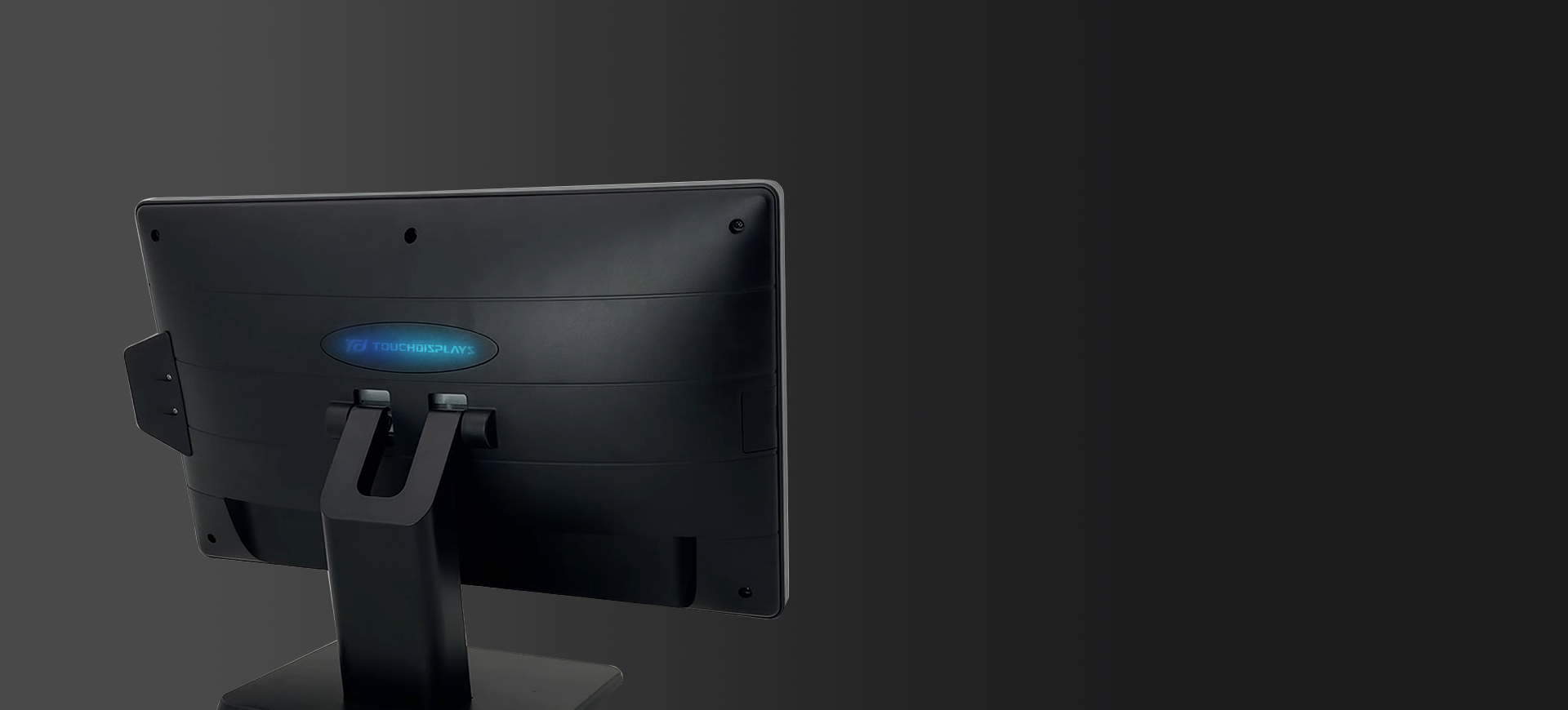

modern design
customized
lighting logo

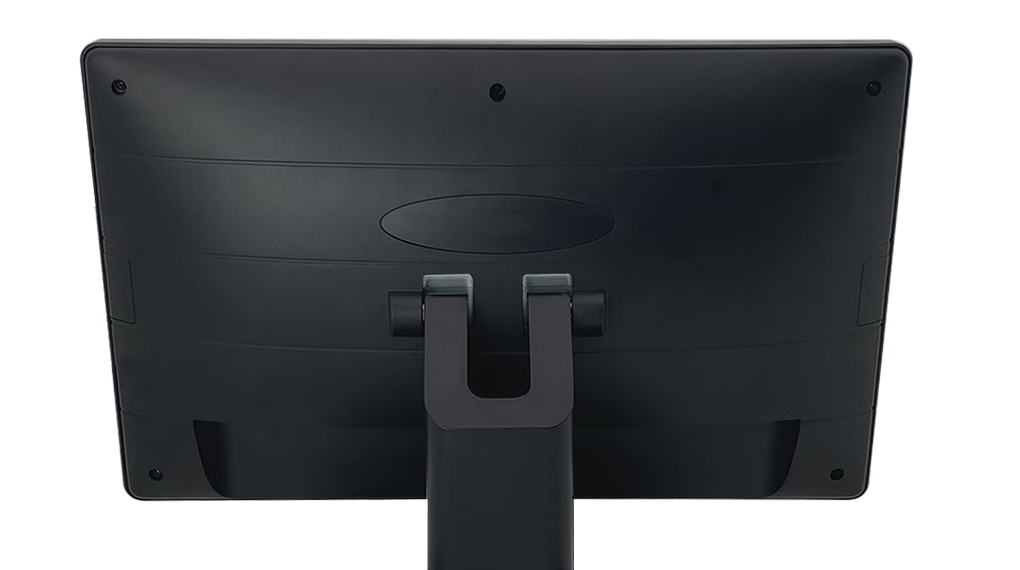

18.5 inch POS Terminals supports a customized logo on the rear shell. With the lighting logo, it enhances your decoration of stores and the brand image.

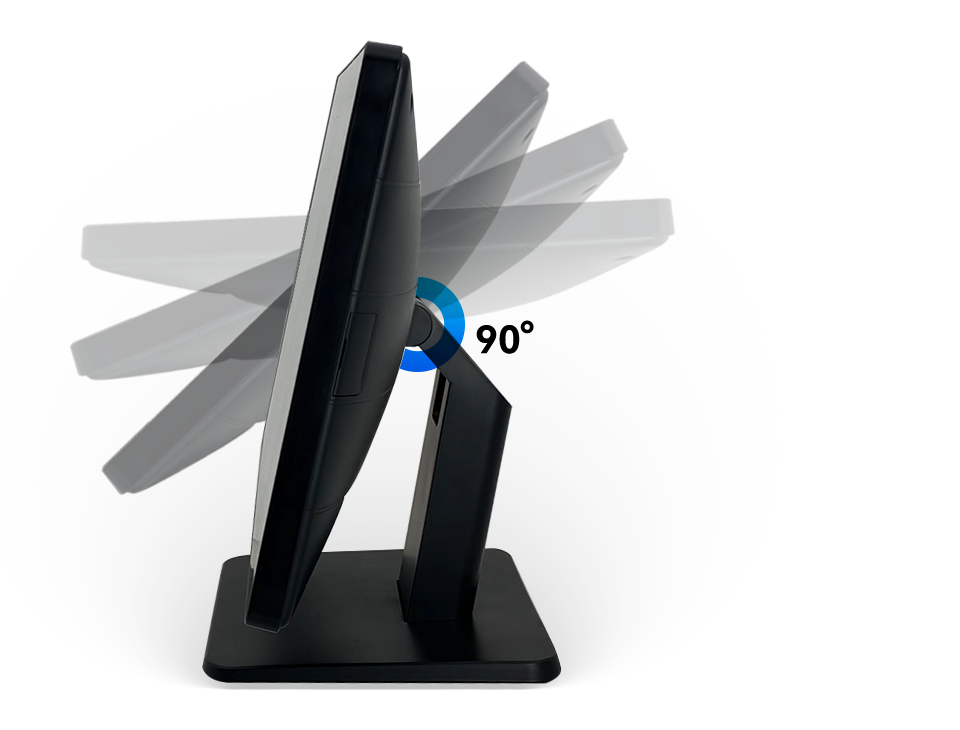

Viewing Angle Adjustable
more convenient
to use
The display head is freely to rotate 90 degree to satisfy the needs of customers' habits.

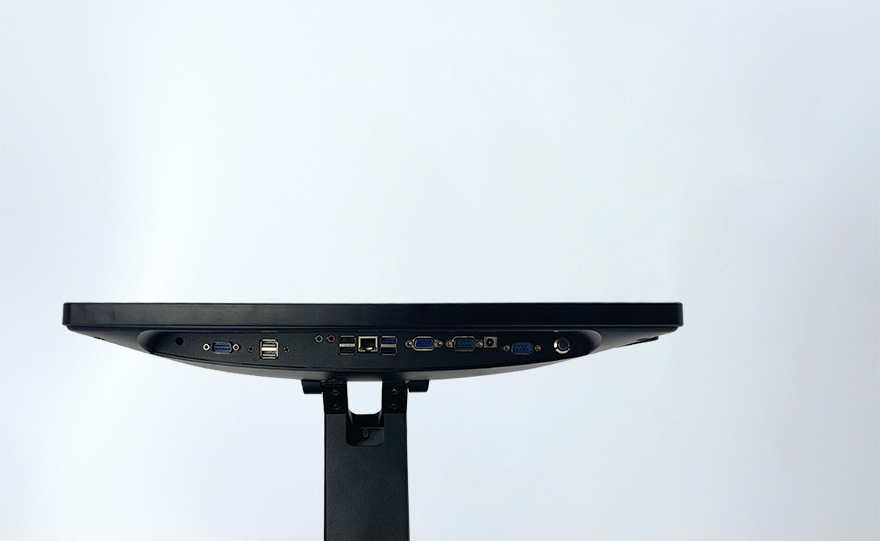

interfaces
The 18.5 inch POS Terminals provides enough I/O ports and can be used as a fully functional POS terminal. Including USB 2.0, VGA, HDMI, serial ports, etc.

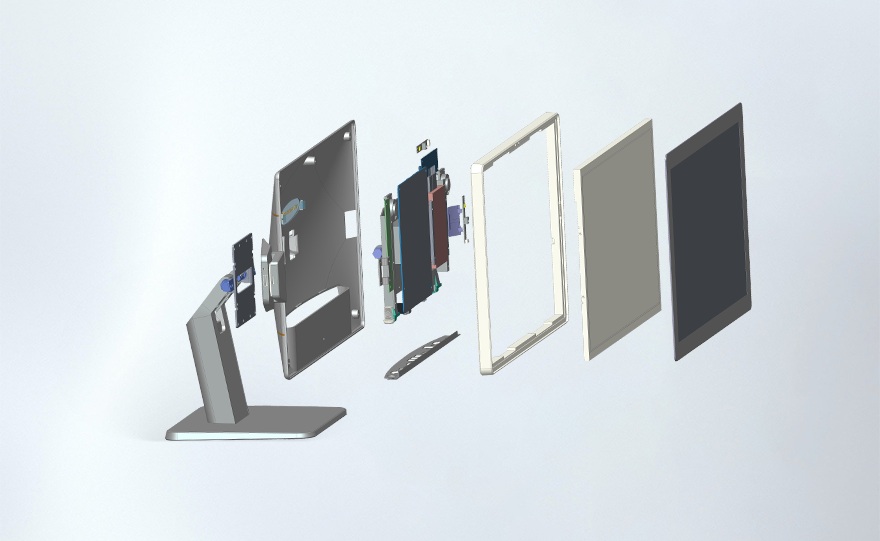

ODM&OEM Service
customize
unique
product
TouchDisplays could offer unique solution according to your requirements from appearance, function to module based on over 10 years experience and technology.

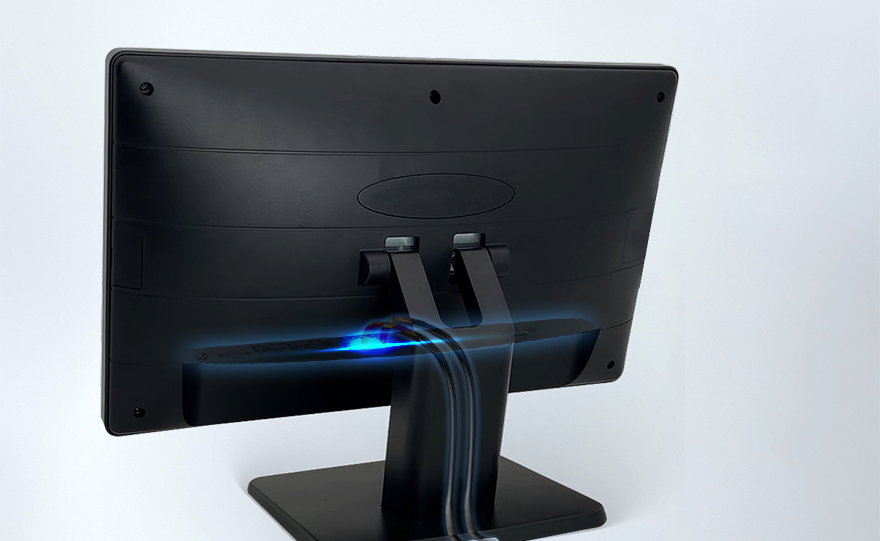

clean
counter
adapt hidden-cable design
Create more counter space through integrating the cables in the stand.

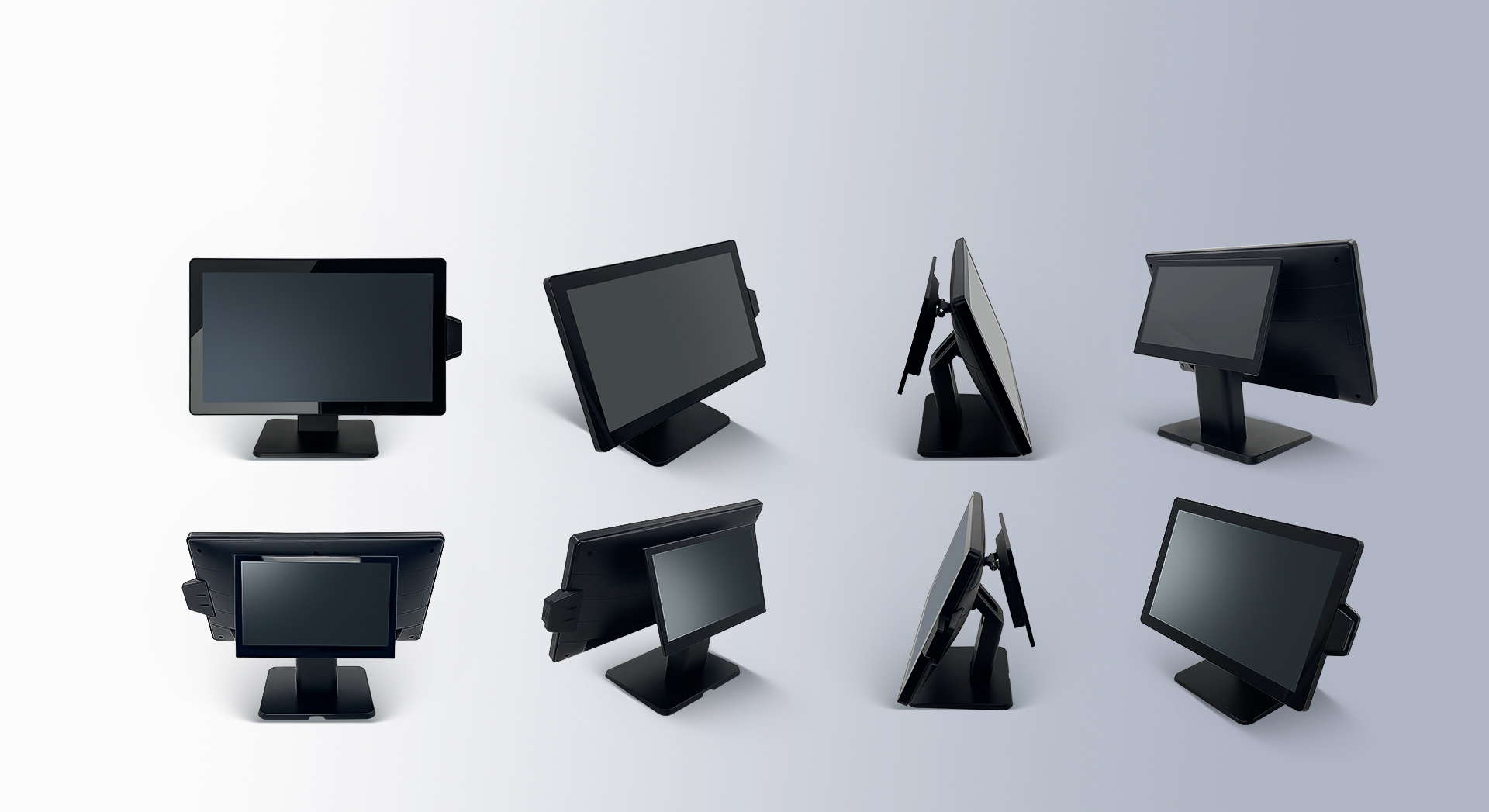

PERIPHERAL SUPPORT
CONNECT TO MULTIPLE PERIPHERAL DEVICES
Connect peripherals to deal with the needs and challenges in your business.
- Customer Display
- Cash Drawer
- Printer
- Scanner
- VFD
- Card Reader
-
retail
-
restaurant
-
hotel
-
mall
