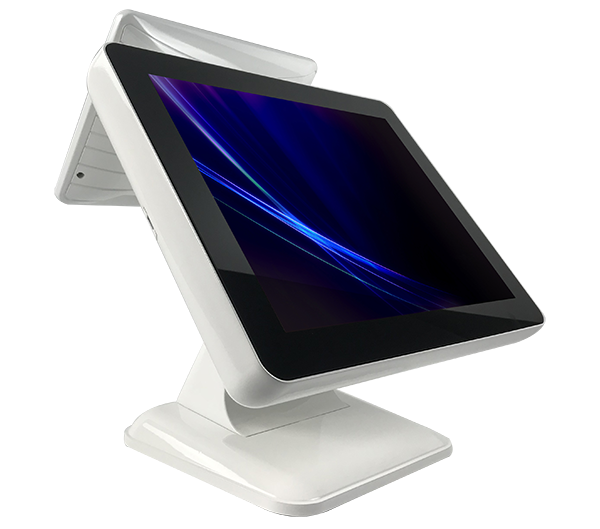

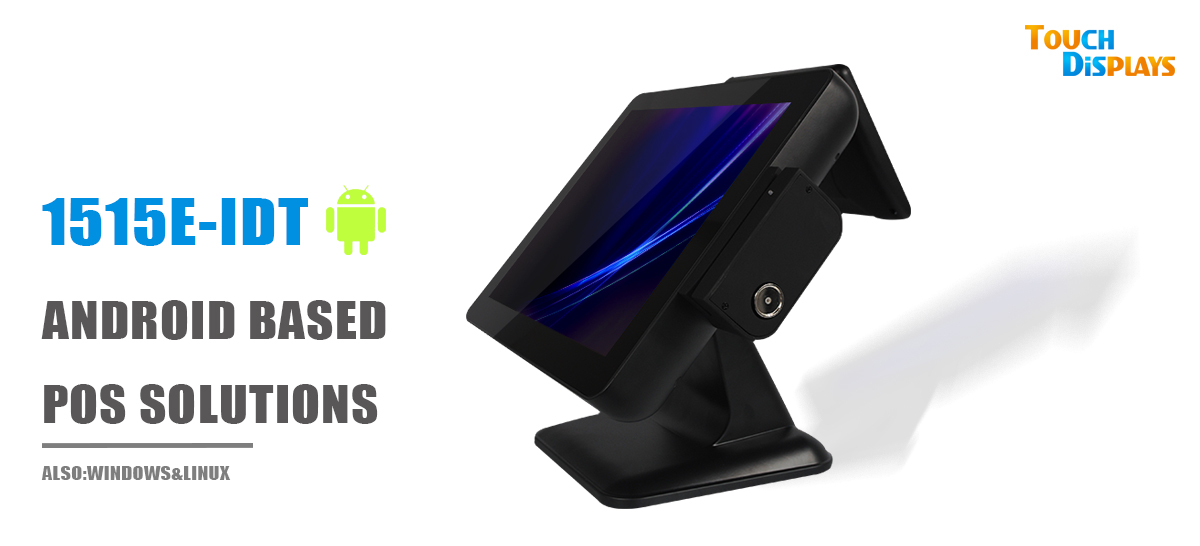

TouchDisplays 1515E series Point of sale is available as a Android based platform. Featured user-friendly OS and capacitive touch screens. Powerful processors and full compatibility with multiple accessories, make it compatible for any software and able to adapt to all applications.
· A series of processors for various Android version
· Rotatable display adapts to users’ using habit
· True-flat and zero-bezel projected capacitive multi touch screen
· Multiple interfaces for all kinds peripherals
A series of processors for various Android version.
With flexible powerful CPU options:
RK3288/RK3368/RK3399.
Android 4.4.2/4.4.4,
Android 5.1/6.0,
Android 7.1
are all supported.
Smart-phone-like OS makes it easy to operate.

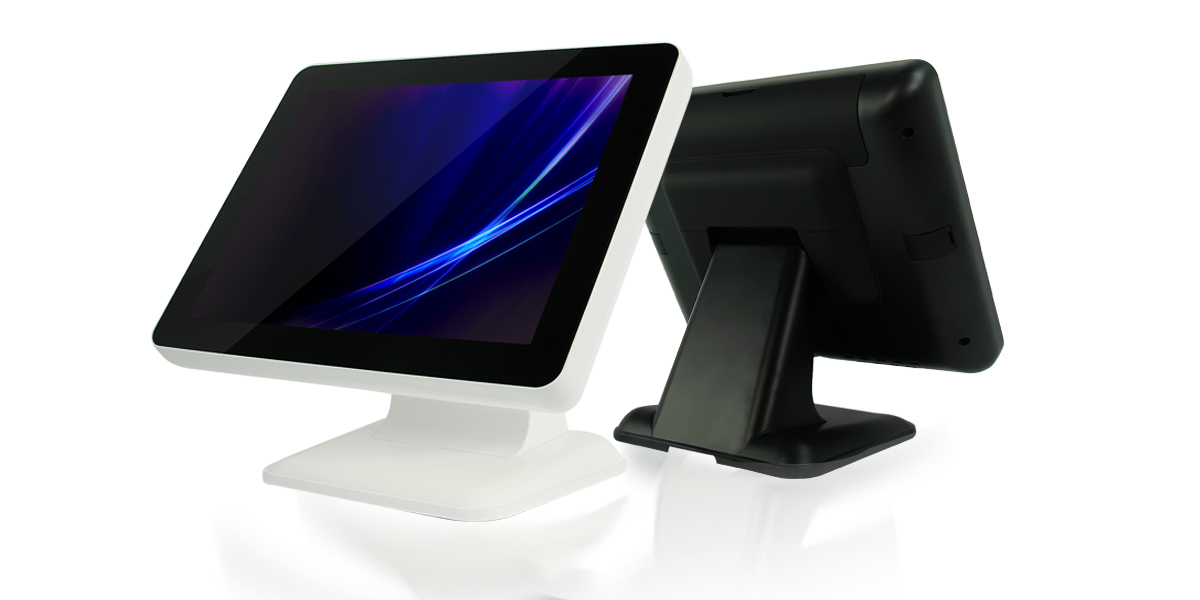

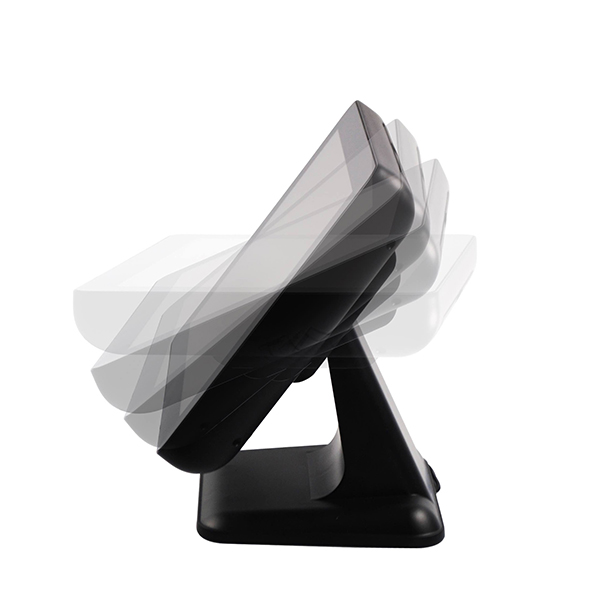

ROTATABLE DISPLAY SCREEN
Our POS is user friendly with a rotatable display head, your staff can find and adjust the screen to the best viewing angle, and best position for operating.
With its projected capacitive screen, 1515E delivers really quick touch response and support multi 10 touch points. Classic 15 inch screens with 1024*768 resolution, provides less time for staff training. Bezel-free and true-flat patented design makes it simple, elegant and reliable.

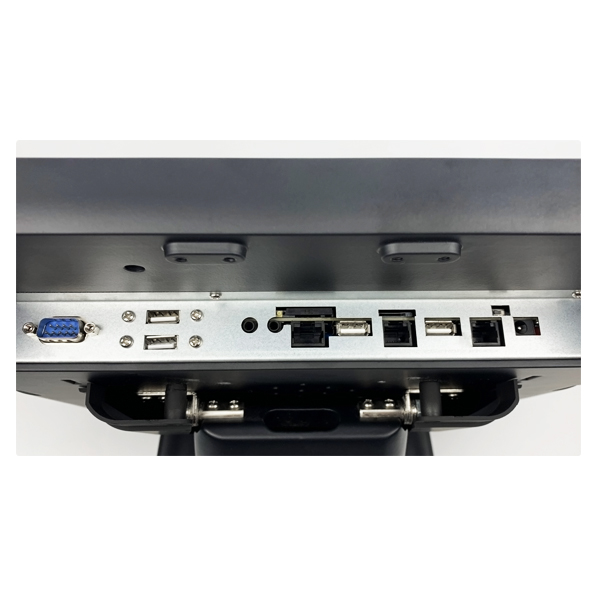

INTERFACE
Offered multiple interfaces: HDMI/VGA, USB, Rj45, Mic and others, installation of video input and output is quick and easy.
The powered USB is available for more peripheral connections.
APPLICATIONS
With unique compatible design, TouchDisplays Android POS systems are built and crafted to adapt to any critical conditions in restaurant, retail and others.
1515E-IDT Specification
|
Model |
1515E-IDT | |
|
Case/Bezel Color |
Black/Silvery/white(Customized) | |
|
Display Size |
15.0″ | |
|
Touch panel (True-flat Style) |
Projected Capacitive touch screen (Resistive touch screen optional) | |
|
Touch response time |
8ms (PCT typical) & 5ms(Resistive) | |
|
Touchcomputors Dimensions |
372x 212 x 318 mm | |
|
LCD Type |
TFT LCD(LED backlight) | |
|
Useful Screen Area |
304 mm x 228 mm | |
|
Aspect ratio |
4:3 | |
|
Optimal (native) Resolution |
1024 x 768 | |
|
LCD panel Pixel pitch |
0.297 x 0.297 mm | |
|
LCD panel Colors |
16.7 million | |
|
LCD panel Brightness |
250 cd/m2 | |
|
LCD panel Contrast Ratio |
800:1 | |
|
LCD panel Response Time |
30 ms | |
|
Viewing Angle |
Horizontal |
±80° or 160° total (left/right) |
|
(typical, from center) |
Vertical |
±80° or 160° total (up/down) |
|
output Video signal connector |
Mini D-Sub 15-Pin VGA type and HDMI type | |
|
Input interface |
2*USB 2.0 & 2*USB 3.0 & 2*COM(3*COM optional) | |
| 1*Earphone1*Mic1*RJ45(2*RJ45 optional) | ||
|
Extend interface |
2*USB2.02*Sata3.02*PCI-E(4G SIM card, 2.4G&5G wifi & Bluetooth module optional) | |
|
Power Supply Type |
Monitor input: +12VDC ±5%,5.0 A; DC Jack (2.5￠) | |
| AC to DC power brick input: 100-240 VAC, 50/60 Hz | ||
| Power Consumption: less than 60W | ||
|
ECM (Embed Computer Modul) |
ECM2: Intel processor J1800 (Dual Core 2.41GHz,Fanless) | |
| ECM3: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless) | ||
| ECM4: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless) | ||
| ECM5: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless) | ||
| ECM6: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless) | ||
| CPU Upgrade:3855U & I3-I7 series 5th 6th 7th optional | ||
| SATA3:HDD 500G(up to 1TB optional);SDD 32G(up to 128G optional) | ||
| Memory: DDR3 4G(extend up to 16G Optional) | ||
| ECM8: RK3288 Cortex-A17 quad-core 1.8G, GPU:Mali-T764;Operation System: 5.1 | ||
| ECM9: RK3368 Cortex-A53 8Core 1.5GHz;GPU:PowerVR G6110;Operation System: 6.0 | ||
| ECM10:RK3399 Cortex-A72+Cortex-A53 6-Core 2GHz;GPU:Mail-T860MP4;Operation System: 7.1 | ||
| Rom:2G(up to 4G optional);Flash:8G(up to 32G optional) | ||
|
Temperature |
Operating: 0°C to 40°C ;Storage -20°C to 60°C | |
|
Humidity (non condensing) |
Operating: 20%-80%; Storage: 10%-90% | |
|
Shipping Carton Dimensions |
450 x 280 x 470 mm(with stand);470 x 210 x 420 mm(without stand) | |
|
Weight (approx.) |
Actual: 6.8 kg ;Shipping: 8.2 kg | |
|
Warranty Monitor |
3 years(Except for LCD panel 1 year) | |
| Backlight lamp life: typical 50,000 hours to half brightness | ||
|
Agency Approvals |
CE/FCC RoHS (UL & GS customized) | |
|
Mounting Options |
75 mm and 100mm VESA mount(Remove Stood) | |
