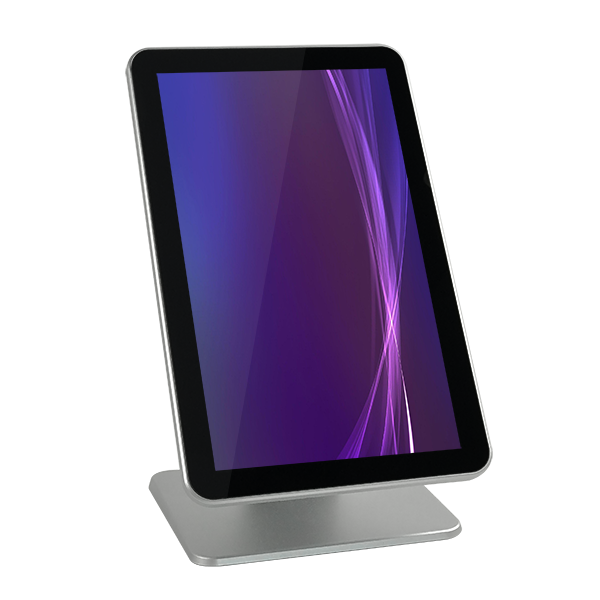

15.6″ Portrait POS Terminal

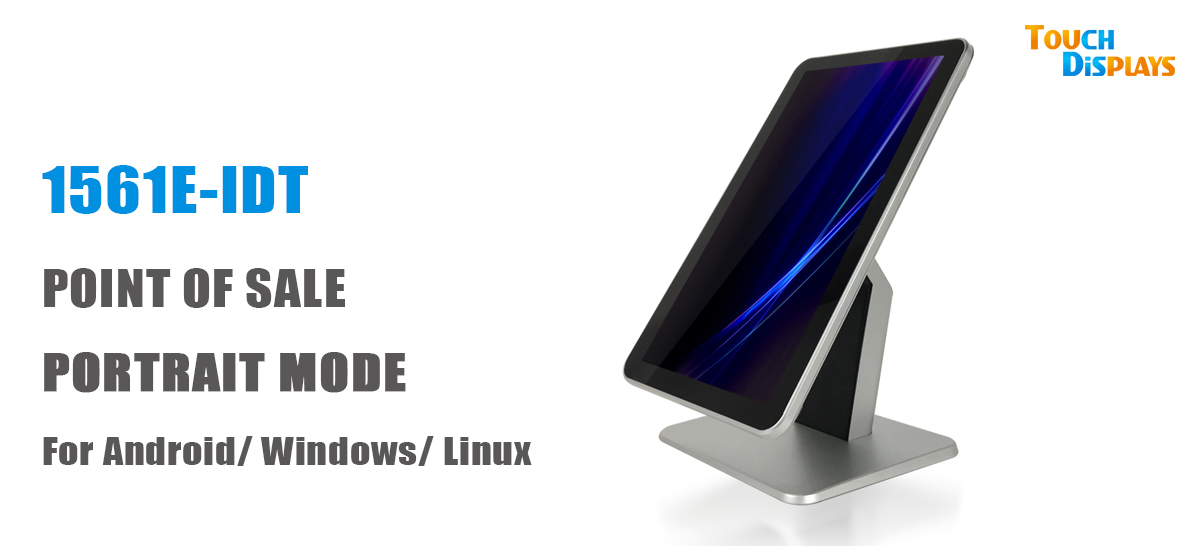

The TouchDisplays portrait POS is a special designed mode of 1561E-IDT series high cost effective solutions. Featured with vertical HD

display andtop performance powered by powerful fanless processors and capacitive touch screens.


· Stylish portrait screens meet special requirements
· Extremely powerful and low consumption fanless processors
· Rotatable display adapts to users’ using habit
· 15.6 inch projected capacitive multi touch screen
· Economical plastic casing with our own patented design
· Multiple interfaces for all kinds peripherals
· Super slim display head with zero-bezel and true-flat screen

15.6 inch Touch Portrait Screen POS Terminal (7)

Unique and stylish is how we declare our portrait POS system. It’s in a class by itself and make you have a style of your own. Compare to ordinary landscape mode POS, the portrait POS is more smart-phone like which makes it easy-to-use for your staff, saving time for staff training.

15.6 inch Touch Portrait Screen POS Terminal (6)

Extremely powerful and low consumption fanless processors;
Flexible CPU options for different Android versions;
Wide range from Intel j1800 to i7 latest 7th generation for windows.
It runs critical applications fast, helps you serve your customers even faster.
Fanless processor thus low consumption and a noiseless surrounding.

15.6 inch Touch Portrait Screen POS Terminal (1)
15.6 inch Touch Portrait Screen POS Terminal (2)


Our portrait POS has powerful function, to provide more options for our customers, we developed it with wide screen and HD resolution, the display head is super slim with concise design.

Our POS is user friendly with a rotatable display head, your staff can find and adjust the screen to the best viewing angle, and best position for operating.

15.6 inch Touch Portrait Screen POS Terminal (5)
15.6 inch Touch Portrait Screen POS Terminal (1)
15.6 inch Touch Portrait Screen POS Terminal (4)

15.6 inch projected capacitive multi touch screen;

With its projected capacitive screen, 1561E delivers really quick touch response and support multi 10 touch points.

15.6 inch wide screens come with 1366*768 or 1920*1080 HD resolution, and 4K is also an option if required.


Offered multiple I/O interfaces , including USB ports, Mic, RJ45 ports and more.
The powered USB is available for more peripheral connections.
And with thanks to the multiple interface design
peripherals installation and uninstallation are quick and easy for your staff.

15.6 inch Touch Portrait Screen POS Terminal (4)


With unique compatible design, TouchDisplays POS systems are built and crafted to adapt to any critical conditions.

15.6 inch Touch Portrait Screen POS Terminal (2)

  • Previous:
  • Next:

  • https://www.touchdisplays-tech.com/vfd.htmlhttps://www.touchdisplays-tech.com/second-displays.htmlhttps://www.touchdisplays-tech.com/barcode-scanner.htmlhttps://www.touchdisplays-tech.com/printer.htmlhttps://www.touchdisplays-tech.com/msrwith-ibutton.htmlhttps://www.touchdisplays-tech.com/cash-draw.html



    Case/Bezel Color


    Display Size



    True Flat

    Touch panel (True-flat Style)

    Projected Capacitive touch screen (Resistive touch screen optional)

    Touch response time


    Touchcomputors Dimensions

    391.6x 201.1 x 318 mm

    LCD Type

    TFT LCD(LED backlight)

    Useful Screen Area

    345.5 mm x 195 mm

    Aspect ratio


    Optimal (native) Resolution

    1920 x 1080

    LCD panel Pixel pitch

    0.17925 x 0.17925 mm

    LCD panel Colors

    6bit Hi-FRC

    LCD panel Brightness

    220 cd/m2

    LCD panel Contrast Ratio


    LCD panel Response Time

    12 ms

    Viewing Angle


    ±45° or 90° total

    (typical, from center)


    -20°~+40° or 60° total

    output Video signal connector

    Mini D-Sub 15-Pin VGA type and HDMI type

    Input interface

    2*USB 2.0 & 2*USB 3.0 & 2*COM(3*COM optional)
    1*Earphone1*Mic1*RJ45(2*RJ45 optional)

    Extend interface

    2*USB2.02*COM1*PLT2*PCI-E(4G SIM card, 2.4G&5G wifi & Bluetooth module optional)

    Power Supply Type

    Monitor input: +12VDC ±5%,5.0 A; DC Jack (2.5¢)
    AC to DC power brick input: 90-240 VAC, 50/60 Hz
    Power Consumption: less than 60W

    ECM (Embed Computer Modul)

    ECM2: Intel processor J1800 (Dual Core 2.41GHz,Fanless)
    ECM3: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)
    ECM4: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)
    ECM5: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)
    ECM6: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)
    CPU Upgrade:3855U & I3-I7 series 5th 6th 7th optional
    SATA3:HDD 500G(up to 1TB optional);SDD 32G(up to 128G optional)
    Memory: DDR3 4G(extend up to 16G Optional)
    ECM8: RK3288 Cortex-A17 quad-core 1.8G, GPU:Mali-T764;Operation System: 5.1
    ECM9: RK3368 Cortex-A53 8Core 1.5GHz;GPU:PowerVR G6110;Operation System: 6.0
    ECM10:RK3399 Cortex-A72+Cortex-A53 6-Core 2GHz;GPU:Mail-T860MP4;Operation System: 7.1
    Rom:2G(up to 4G optional);Flash:8G(up to 32G optional)


    Operating: 0°C to 40°C ;Storage -20°C to 60°C

    Humidity (non condensing)

    Operating: 20%-80%; Storage: 10%-90%

    Shipping Carton Dimensions

    450 x 280 x 470 mm(with stand);470 x 210 x 420 mm(without stand)

    Weight (approx.)

    Actual: 6.8 kg ;Shipping: 8.2 kg

    Warranty Monitor

    3 years(Except for LCD panel 1 year)
    Backlight lamp life: typical 50,000 hours to half brightness

    Agency Approvals

    CE/FCC RoHS (UL & GS customized)

    Mounting Options

    75 mm and 100mm VESA mount(Remove Stood)
