15.6 inch Android POS Terminal

Overview

ACCESSORIES

SPECIFICATION

Contact Us

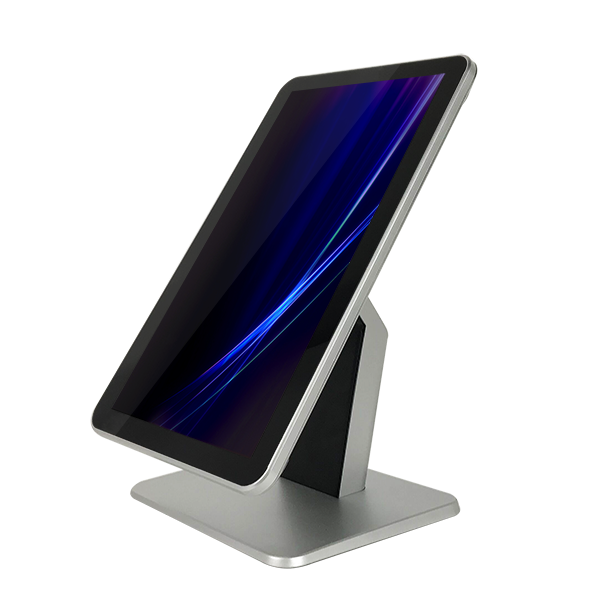

15.6 inch Android POS terminal-7

TouchDisplays 1561E series Point of sale is available as a Android based platform. Featured user-friendly OS and capacitive touch screens. Powerful processors and full compatibility with multiple accessories, make it compatible for any software and able to adapt to all applications.









15.6 inch Android POS terminal-10



















· A series of processors for various Android version.

· Rotatable display adapts to users’ using habit.

· True-flat and zero-bezel projected capacitive multi touch screen

· Multiple interfaces for all kinds peripherals.

· Flexibly applied for portrait screen use.

















STYLISH PORTRAIT SCREENS





Unique and stylish is how we declare our portrait POS system.

It’s in a class by itself and make you have a style of your own.

It saves space and gives your staff a special operating experience.

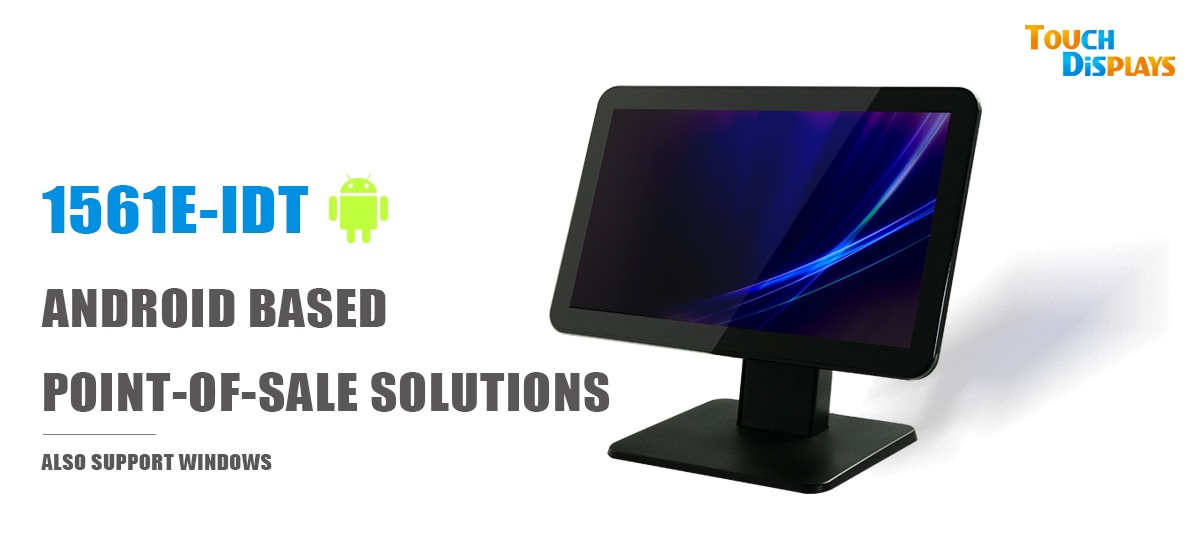

15.6 inch Android POS terminal-7









15.6 inch Android POS terminal-11



















A series of processors for various Android version.;

With flexible powerful CPU options:

RK3288/RK3368/RK3399.

Android 4.4.2/4.4.4;

Android 5.1/6.0;

Android 7.1

are all supported.

Smart-phone-like OS makes it easy to operate.

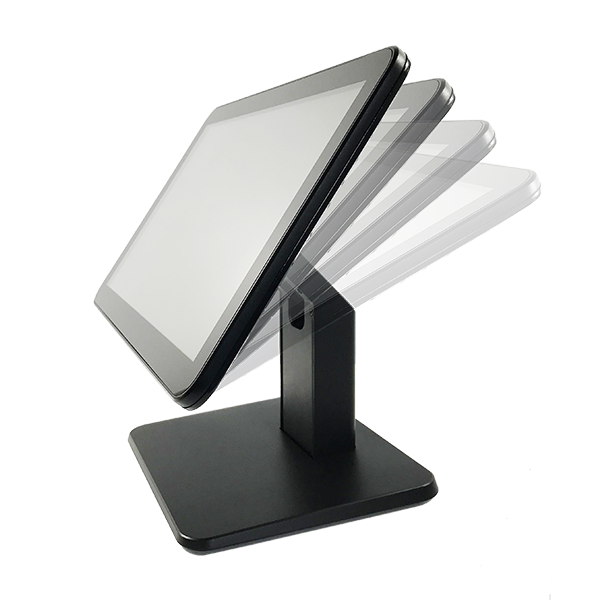

ROTATABLE DISPLAY SCREEN



Our POS is user friendly with a rotatable display head, your staff can find and adjust the screen to the best viewing angle, and best position for operating.

15.6 inch Android POS terminal-9









15.6 inch Android POS terminal-5









15.6 inch Android POS terminal-3

With its projected capacitive screen, 1561E delivers really quick touch response and support multi 10 touch points. 15.6 inch wide screens come with 1366*768 or 1920*1080 HD resolution, and 4K is also an option if required.









15.6 inch Android POS terminal-8









SUPER SLIM DISPLAY HEAD WITH ZERO-BEZEL AND TRUE-FLAT SCREEN



1561E has same powerful function as 1515E series, to provide more options for our customers, we developed it with wide screen and HD resolution, the display head is super slim with concise design.

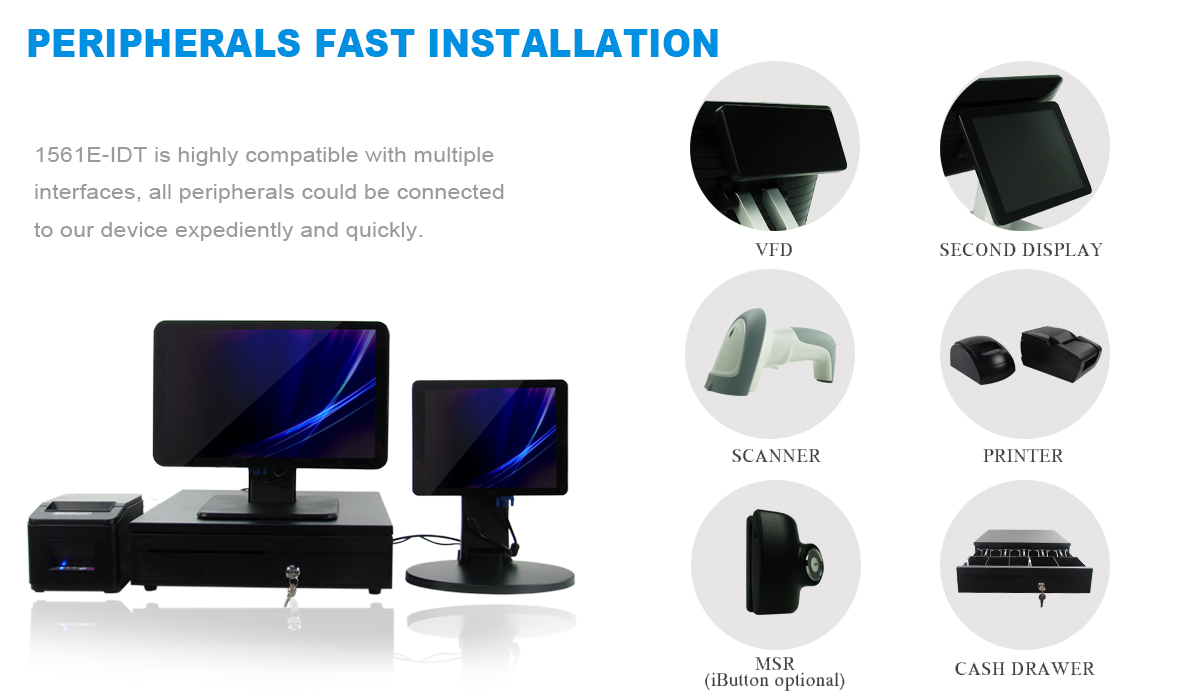

15.6 inch Android POS terminal-4









APPLICATIONS

With unique compatible design, TouchDisplays Android POS systems are built and crafted to adapt to any critical conditions in restaurant, retail and others.

15.6 inch Android POS terminal-6










  • Previous:
  • Next:

  • VFD          SCANNER

    Second display          PRINTER

    msr          cash drawer

    Model

    1561E-IDT

    Case/Bezel Color

    Black/Silvery/white(Customized)

    Display Size

    15.6″

    Style

    True Flat

    Touch panel (True-flat Style)

    Projected Capacitive touch screen (Resistive touch screen optional)

    Touch response time

    8ms

    Touchcomputors Dimensions

    391.6x 201.1 x 318 mm

    LCD Type

    TFT LCD(LED backlight)

    Useful Screen Area

    345.5 mm x 195 mm

    Aspect ratio

    16:9

    Optimal (native) Resolution

    1920 x 1080

    LCD panel Pixel pitch

    0.17925 x 0.17925 mm

    LCD panel Colors

    6bit Hi-FRC

    LCD panel Brightness

    220 cd/m2

    LCD panel Contrast Ratio

    500:1

    LCD panel Response Time

    12 ms

    Viewing Angle

    Horizontal

    ±45° or 90° total

    (typical, from center)

    Vertical

    -20°~+40° or 60° total

    output Video signal connector

    Mini D-Sub 15-Pin VGA type and HDMI type

    Input interface

    2*USB 2.0 & 2*USB 3.0 & 2*COM(3*COM optional)
    1*Earphone1*Mic1*RJ45(2*RJ45 optional)

    Extend interface

    2*USB2.02*COM1*PLT2*PCI-E(4G SIM card, 2.4G&5G wifi & Bluetooth module optional)

    Power Supply Type

    Monitor input: +12VDC ±5%,5.0 A; DC Jack (2.5¢)
    AC to DC power brick input: 90-240 VAC, 50/60 Hz
    Power Consumption: less than 60W

    ECM (Embed Computer Modul)

    ECM2: Intel processor J1800 (Dual Core 2.41GHz,Fanless)
    ECM3: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless)
    ECM4: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless)
    ECM5: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)
    ECM6: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)
    CPU Upgrade:3855U & I3-I7 series 5th 6th 7th optional
    SATA3:HDD 500G(up to 1TB optional);SDD 32G(up to 128G optional)
    Memory: DDR3 4G(extend up to 16G Optional)
    ECM8: RK3288 Cortex-A17 quad-core 1.8G, GPU:Mali-T764;Operation System: 5.1
    ECM9: RK3368 Cortex-A53 8Core 1.5GHz;GPU:PowerVR G6110;Operation System: 6.0
    ECM10:RK3399 Cortex-A72+Cortex-A53 6-Core 2GHz;GPU:Mail-T860MP4;Operation System: 7.1
    Rom:2G(up to 4G optional);Flash:8G(up to 32G optional)

    Temperature

    Operating: 0°C to 40°C ;Storage -20°C to 60°C

    Humidity (non condensing)

    Operating: 20%-80%; Storage: 10%-90%

    Shipping Carton Dimensions

    450 x 280 x 470 mm(with stand);470 x 210 x 420 mm(without stand)

    Weight (approx.)

    Actual: 6.8 kg ;Shipping: 8.2 kg

    Warranty Monitor

    3 years(Except for LCD panel 1 year)
    Backlight lamp life: typical 50,000 hours to half brightness

    Agency Approvals

    CE/FCC RoHS (UL & GS customized)

    Mounting Options

    75 mm and 100mm VESA mount(Remove Stood)
