21.5 Inch True Flat Touch Signage

gambaran Keseluruhan



Hubungi Kami


TouchDisplays multifunctional Touch Interactive Digital Signage delivers a powerful Windows-based or Android-based platform. With customized thickness it provides a commercial grade product. Projected multi touch and VESA mount make it meet multi purpose, tempered glass designed to withstand extreme operating environment.


TouchDisplays interactive signage featured with its multipurpose ability. We do customized kiosks built in or customized thickness to fit your kiosks. With a compatible VESA holes, it’s also able to be wall mounted or floor-stand with a bracket. Benefit from its optional high brightness and true viewing angle, our digital signage is sunlight readable.





Extremely powerful and low consumption fanless processors;

Flexible CPU options for different Android versions;

Wide range from Intel j1800 to i7 latest 7th generation for windows.

2151E Touch All In One PC runs critical applications fast, helps you serve your customers even faster.

Fanless processor thus low consumption and a noiseless surrounding.

true flat touch all in one pc (5)


Offered multiple interfaces: HDMI/VGA, USB, Rj45, Mic and others, installation of video input and output is quick and easy. The powered USB is available for more peripheral connections.

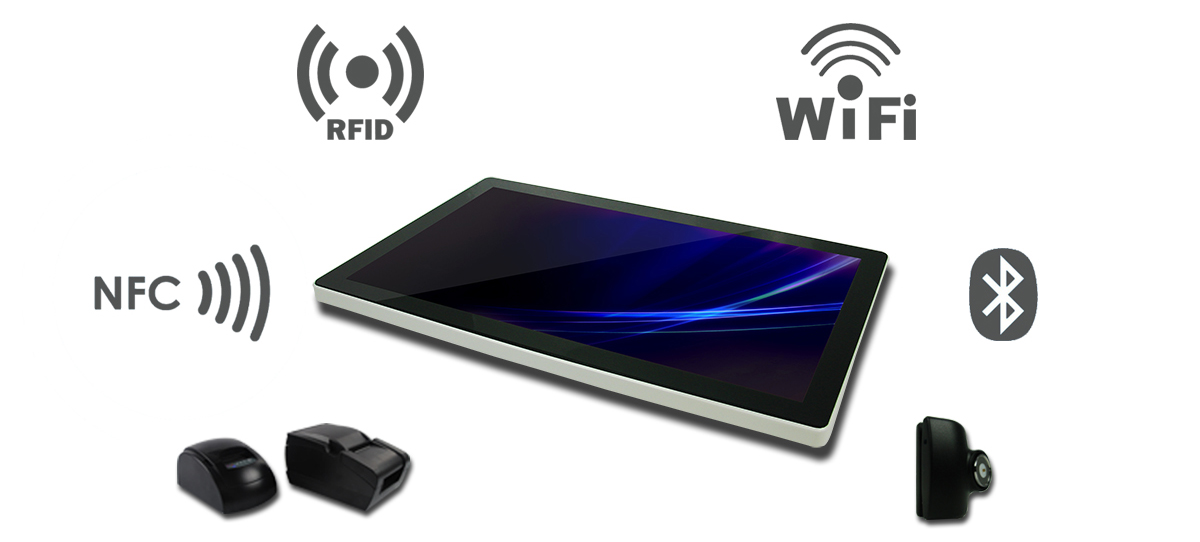

Beyond the powerful PACP multi touch screen display, multiple peripherals are available to meet all kinds of applications, including near-field communication (NFC/RFID), mag strip reader (MSR) thermal printers and others. Built-in WiFi and bluetooth make it able to be connected anytime and anywhere.


true flat touch all in one pc (8)

  • Sebelum:
  • Seterusnya:

  • model


    Kes / bezel Warna


    Saiz paparan

    21.5 "

    panel Touch

    Projected Capacitive Touch Screen

    titik sentuh


    masa tindak balas sentuhan


    TouchAIO Dimensions

    524 x 46 x 315.5 mm

    Jenis LCD

    TFT LCD (lampu belakang LED)

    Kawasan Skrin berguna

    477.8 mm x 269.3 mm

    Nisbah aspek

    16: 9

    Optimal Resolusi (asli)

    1920 * 1080

    LCD panel Pixel padang

    0.1875 x 0.1875 mm

    panel LCD warna

    16.7 juta

    LCD kecerahan panel

    250 cd / m2

    panel LCD Masa Maklum Balas

    16 ms

    Sudut Penglihatan

    (Tipikal, dari tengah)


    ±89° or 178° total (left/right)


    ±89° or 178° total (up/down)

    Nisbah kontras

    3000: 1

    Output video penyambung isyarat

    Mini D-Sub 15-Pin jenis VGA dan jenis HDMI

    antara muka

    usb 2.0*4(usb 3.0*2 optional)PCI-E(4G SIM card, wifi and Bluetooth optional)


    Bekalan Kuasa Jenis

    Monitor input interface: +12VDC ±5%,6.0 A; DC Jack (2.5¢ )

    AC ke DC input bata kuasa: 100-240 VAC, 50/60 Hz

    Power Consumption: 50W


    (Embed Komputer Modul)

    ECM3:  Intel pemproses J1900 (2.0GHz Quad-core / 2.4GHz, tanpa kipas)

    ECM4:  Intel pemproses i3-4010U (Core 1.7GHz Dual, tanpa kipas)

    ECM5:  Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)

    ECM6:  Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)

    SATA3: HDD 500G(up to 1TB optional) or SDD 32G(up to 128G optional)

    Memory:  DDR3 4G (melanjutkan sehingga 16G Pilihan)

    CPU Upgrade: J3160 & I3-I7 siri 5 th  6 th  7 th  pilihan

    Sistem operasi: Win7Pos Ready7Win8XPWinCEVistaLinux

    ECM9:  Cortex-A53 8Core 1.5GHz; GPU : PowerVR G6110

    Rom :1G(up to 2G4G optional);Flash : 8G (sehingga 32G pilihan)

    Operation System: 5.1 or 6.0


    Pengendalian: 0 ° C hingga 40 ° C; Storage -20 ° C hingga 60 ° C

    Kelembapan (tidak terkondensasi)

    Pengendalian: 20% -80%; Penyimpanan: 10% -90%

    Penghantaran Carton Ukuran

    620 x 206 x 456 mm (2 PCS)

    Berat (lebih kurang.)

    Product Actual: 5.1 kg(1 Piece) ;Shipping: 13.2 kg( 2 PCS)

    jaminan Monitor

    3 tahun (Kecuali untuk panel LCD 1 tahun)

    Lampu belakang lampu hidup: yang biasa 50,000 jam setengah kecerahan

    agensi Kelulusan

    CE/FCC/RoHS (UL or GS for Customized)

    pemasangan Pilihan

    75 mm and 100 mm VESA mount
