21.5 Inch True Flat Touch Signage

Visión de conjunto

ACCESSORIES

SPECIFICATION

Contáctenos

true flat touch all in one pc (4)

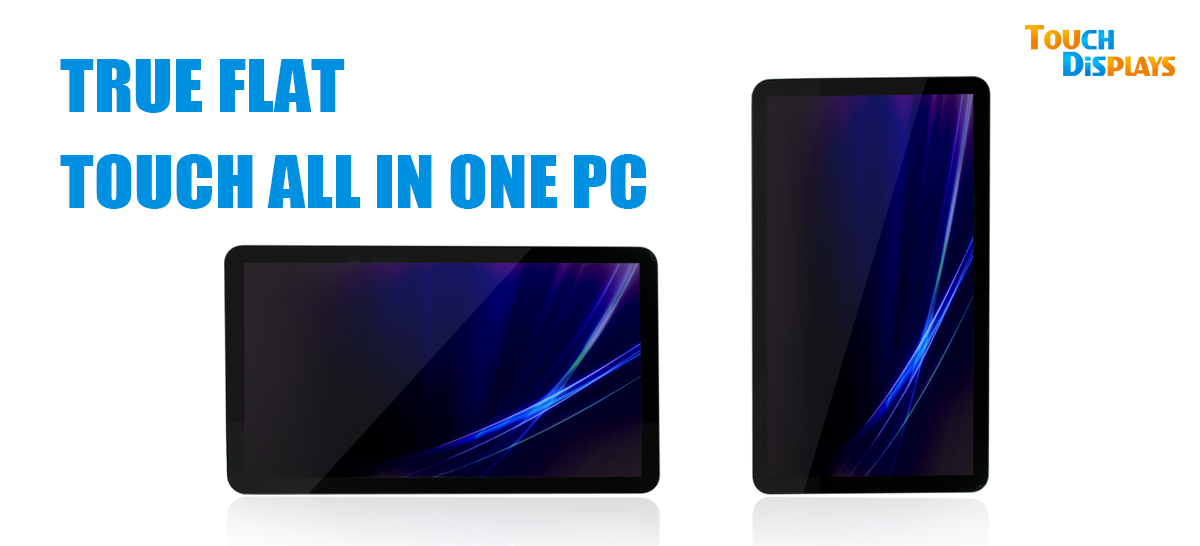

TouchDisplays multifunctional Touch Interactive Digital Signage delivers a powerful Windows-based or Android-based platform. With customized thickness it provides a commercial grade product. Projected multi touch and VESA mount make it meet multi purpose, tempered glass designed to withstand extreme operating environment.









true flat touch all in one pc (3)
true flat touch all in one pc (1)

TouchDisplays interactive signage featured with its multipurpose ability. We do customized kiosks built in or customized thickness to fit your kiosks. With a compatible VESA holes, it’s also able to be wall mounted or floor-stand with a bracket. Benefit from its optional high brightness and true viewing angle, our digital signage is sunlight readable.









true flat touch all in one pc (4)















Extremely powerful and low consumption fanless processors;

Flexible CPU options for different Android versions;

Wide range from Intel j1800 to i7 latest 7th generation for windows.

2151E Touch All In One PC runs critical applications fast, helps you serve your customers even faster.

Fanless processor thus low consumption and a noiseless surrounding.









true flat touch all in one pc (5)









true flat touch all in one pc (6)

INTERFACE

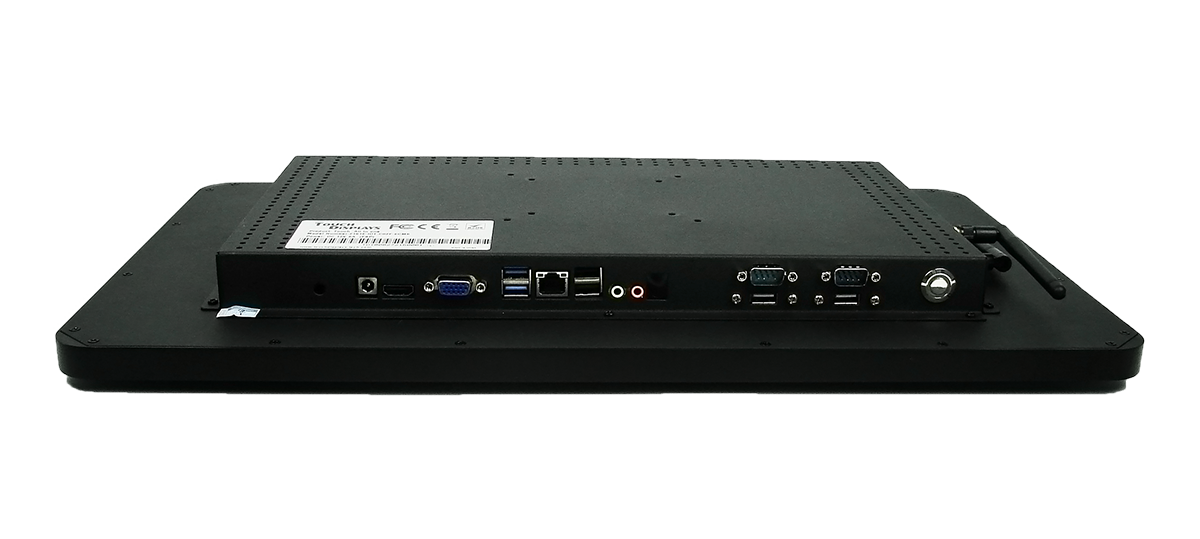

Offered multiple interfaces: HDMI/VGA, USB, Rj45, Mic and others, installation of video input and output is quick and easy. The powered USB is available for more peripheral connections.









true flat touch all in one pc (9)

PERIPHERALS

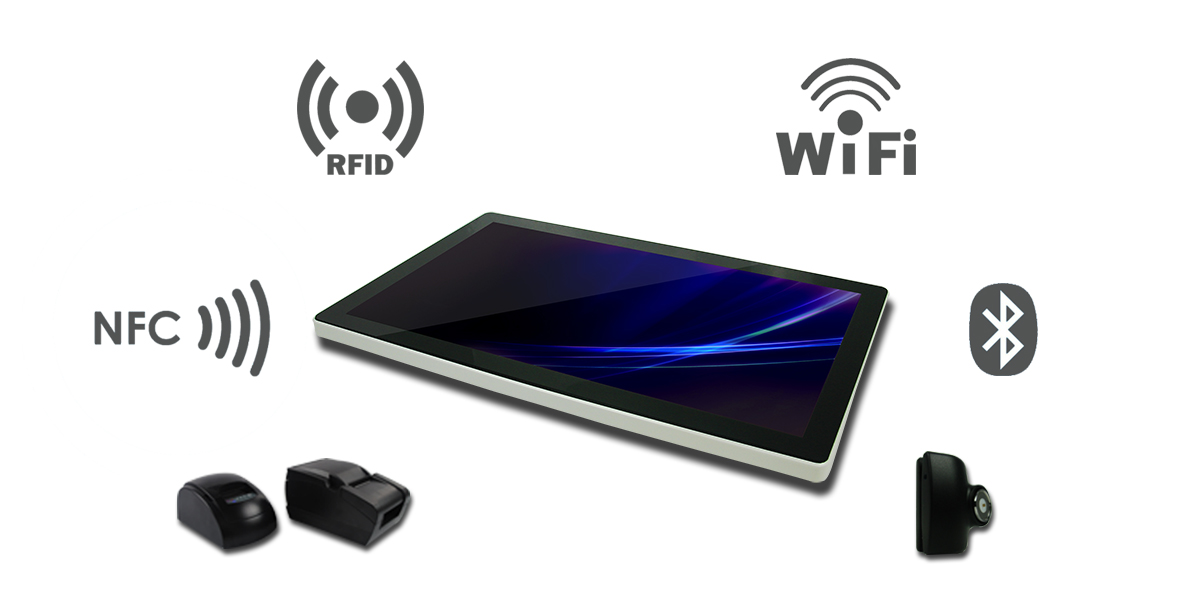

Beyond the powerful PACP multi touch screen display, multiple peripherals are available to meet all kinds of applications, including near-field communication (NFC/RFID), mag strip reader (MSR) thermal printers and others. Built-in WiFi and bluetooth make it able to be connected anytime and anywhere.









APPLICATION

true flat touch all in one pc (8)


























  • Anterior:
  • Siguiente:

  • Modelo

    2151E-IOT-F

    Caso / Bisel color

    Blackwhite

    tamaño de la pantalla

    21.5 "

    Panel táctil

    Projected Capacitive Touch Screen

    Puntos de contacto

    10

    tiempo de respuesta táctil

    8 ms

    TouchAIO Dimensions

    524 x 46 x 315.5 mm

    Tipo LCD

    LCD TFT (luz de fondo LED)

    Útil Área de pantalla

    477.8 mm x 269.3 mm

    relación de aspecto

    16: 9

    Resolución óptima (nativo)

    1920 * 1080

    pitch del panel LCD Pixel

    0.1875 x 0.1875 mm

    Colores del panel LCD

    16,7 millones

    El brillo del panel LCD

    250 cd / m2

    Tiempo de respuesta del panel LCD

    16 ms

    Ángulo de visión

    (Típica, desde el centro)

    Horizontal

    ±89° or 178° total (left/right)

    Vertical

    ±89° or 178° total (up/down)

    Relación de contraste

    3000: 1

    Conector de salida de señal de vídeo

    Mini D-Sub de 15 pines tipo VGA y HDMI tipo

    Interfaz

    usb 2.0*4(usb 3.0*2 optional)PCI-E(4G SIM card, wifi and Bluetooth optional)

    Earphone*1Mic*1Com*3RJ45*1

    Potencia Tipo de la fuente

    Monitor input interface: +12VDC ±5%,6.0 A; DC Jack (2.5¢ )

    CA a CC de entrada bloque de alimentación: 100-240 V CA, 50/60 Hz

    Power Consumption: 50W

     ECM

    (Insertar Modul ordenador)

    ECM3:  Intel procesador J1900 (Quad-core 2,0 GHz / 2,4 GHz, sin ventilador)

    ECM4:  Intel procesador i3-4010U (Dual 1,7 GHz Core, sin ventilador)

    ECM5:  Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless)

    ECM6:  Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless)

    SATA3: HDD 500G(up to 1TB optional) or SDD 32G(up to 128G optional)

    Memory:  DDR3 4G (extender hasta 16G opcional)

    Actualización de la CPU: J3160 y I3-I7 serie 5 º  6 º  7 º  opcional

    Funcionamiento del sistema: Win7Pos Ready7Win8XPWinCEVistaLinux

    ECM9:  Cortex-A53 8CORE 1,5 GHz; GPU : PowerVR G6110

    Rom :1G(up to 2G4G optional);Flash : 8G (hasta 32G opcional)

    Operation System: 5.1 or 6.0

    Temperatura

    De funcionamiento: 0 ° C a 40 ° C; de almacenamiento -20 ° C a 60 ° C

    Humedad (sin condensación)

    De funcionamiento: 20% -80%; Almacenamiento: 10% -90%

    Envío Dimensiones

    620 x 206 x 456 mm (2 PCS)

    Peso aproximado.)

    Product Actual: 5.1 kg(1 Piece) ;Shipping: 13.2 kg( 2 PCS)

    monitor de garantía

    3 años (excepto para el panel LCD de 1 año)

    Backlight vida de la lámpara: típicos 50.000 horas a medio brillo

    Aprobaciones de los organismos

    CE/FCC/RoHS (UL or GS for Customized)

    Opciones de montaje

    75 mm and 100 mm VESA mount
